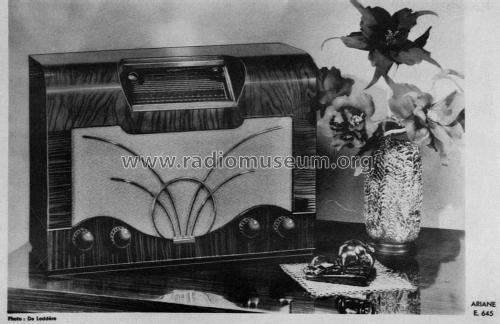

E645
Ariane; Paris
- Country
- France
- Manufacturer / Brand
- Ariane; Paris
- Year
- 1936/1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 289233
ebay.fr #133660516349 seller topminiature
ebay.fr #133660516349 seller topminiature
ebay.fr #133660516349 seller topminiature
Fichier Ariane
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: E645 - Ariane; Paris
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 580 x 400 x 230 mm / 22.8 x 15.7 x 9.1 inch
- Notes
-
4 gammes d'ondes : OC1 de 18 à 51 m, OC2 de 49 à 145 m (selon un autre dépliant de 16 à 35 et de 30 à 35 m), PO de 200 à 550 m, GO de 1000 à 2000 m. Antifading.
Ébénisterie palissandre ou noyer, décors chromé et cuivre rouge.
Prix en 16 versements : 3350 Fr.
- Price in first year of sale
- 2,990.00 FRF
- Mentioned in
- -- Original prospect or advert
- Literature/Schematics (1)
- -- Original prospect or advert (Janvier 1937)
