SA3217A

• Country
• Netherlands

• Manufacturer / Brand
• Aristona; Eindhoven

• Year
• 1963/1964

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 102760

• • Brand: Aristona

• Picture

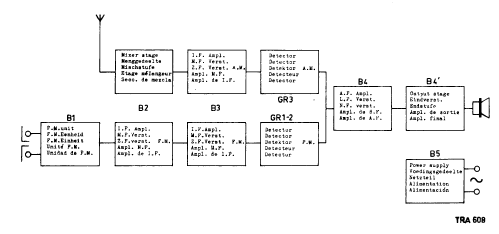

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECC85 ECH81 EF85 ECL86 EZ80

• Number of Transistors

• Semiconductors
• AA119 OA79

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 111; 127; 145; 165; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org
• Model: SA3217A - Aristona; Eindhoven

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 428 x 205 x 230 mm / 16.9 x 8.1 x 9.1 inch

• Notes

• Chassis / schematic = Philips B3X32A.

  Loudspeaker: 10 x 16 cm.

• Net weight (2.2 lb = 1 kg)
• 5.3 kg / 11 lb 10.8 oz (11.674 lb)
