B3X32A /04

B3X32A /04; Philips Belgium (ID = 47946) Radio

B3X32A /04; Philips Belgium (ID = 47947) Radio

B3X32A /04; Philips Belgium (ID = 47948) Radio

B3X32A /04; Philips Belgium (ID = 47949) Radio
B3X32A /04; Philips Belgium (ID = 2303874) Radio B3X32A /04; Philips Belgium (ID = 2362999) Radio
B3X32A /04; Philips Belgium (ID = 2363003) Radio B3X32A /04; Philips Belgium (ID = 165759) Radio
B3X32A /04; Philips Belgium (ID = 165760) Radio B3X32A /04; Philips Belgium (ID = 165758) Radio
B3X32A /04; Philips Belgium (ID = 2536663) Radio B3X32A /04; Philips Belgium (ID = 2536664) Radio
B3X32A /04; Philips Belgium (ID = 2536665) Radio B3X32A /04; Philips Belgium (ID = 2536666) Radio
Use red slider bar for more.
B3X32A /04; Philips Belgium (ID = 2303874) Radio

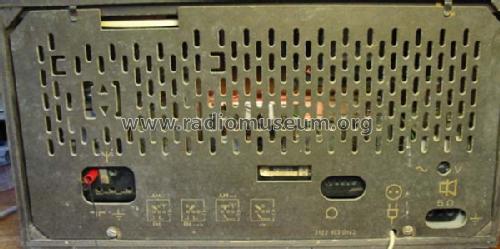

Philips Belgium: B3X32A /04 [Radio] ID = 2303874 1400x905
Select picture or schematic to display from thumbnails on the right and click for download.
For model B3X32A /04, Philips Belgium (Belgien)

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EF85 ECL86 EZ80
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 165; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: B3X32A /04 - Philips Belgium Belgien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 420 x 230 x 210 mm / 16.5 x 9.1 x 8.3 inch
Net weight (2.2 lb = 1 kg) 5.2 kg / 11 lb 7.3 oz (11.454 lb)

Model page created by Iven Müller. See "Data change" for further contributors.



All listed radios etc. from Philips Belgium (Belgien)
Here you find 458 models, 437 with images and 265 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
