Baby Type (Valvole 12,6V)

Baby Type ; Armstrong; where? (ID = 701104) Radio
Baby Type ; Armstrong; where? (ID = 701096) Radio Baby Type ; Armstrong; where? (ID = 701101) Radio

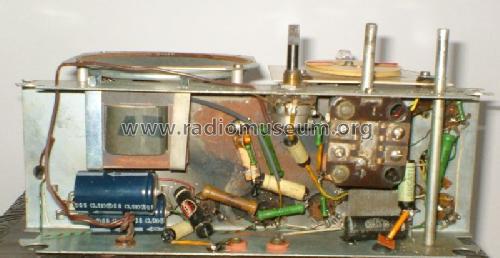

Baby Type ; Armstrong; where? (ID = 701097) Radio Baby Type ; Armstrong; where? (ID = 701098) Radio
Baby Type ; Armstrong; where? (ID = 701099) Radio Baby Type ; Armstrong; where? (ID = 799801) Radio
Baby Type ; Armstrong; where? (ID = 1167322) Radio Baby Type ; Armstrong; where? (ID = 1167323) Radio
Baby Type ; Armstrong; where? (ID = 1167324) Radio Baby Type ; Armstrong; where? (ID = 1422964) Radio
Use red slider bar for more.
Baby Type ; Armstrong; where? (ID = 701096) Radio
Armstrong; where?: Baby Type [Radio] ID = 701096 800x496
Select picture or schematic to display from thumbnails on the right and click for download.
For model Baby Type (Valvole 12,6V), Armstrong; (where?)

Country:  Italy
Manufacturer / Brand:  Armstrong; (where?)
Year: 1956 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 35QL6 35W4
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 120; 140; 160; 180; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Baby Type - Armstrong; where?
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 270 x 170 x 110 mm / 10.6 x 6.7 x 4.3 inch

Model page created by Oscar Dettori. See "Data change" for further contributors.



All listed radios etc. from Armstrong; (where?)
Here you find 14 models, 14 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
