1700

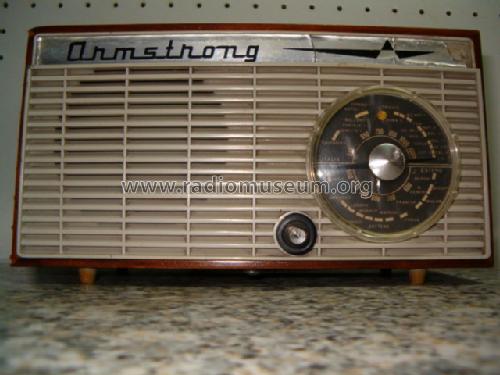

1700; Armstrong; where? (ID = 2045367) Radio 1700; Armstrong; where? (ID = 309123) Radio

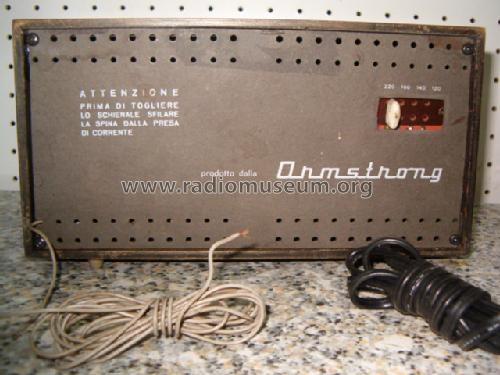

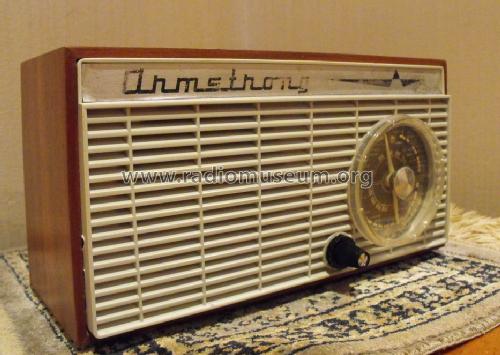

1700; Armstrong; where? (ID = 309124) Radio 1700; Armstrong; where? (ID = 1057694) Radio
Use red slider bar for more.

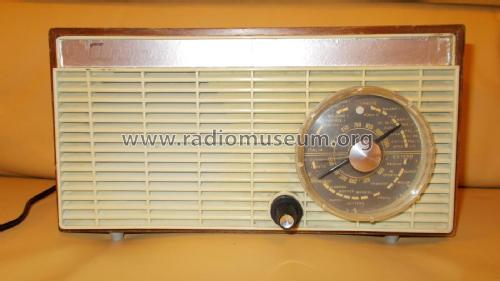

1700; Armstrong; where? (ID = 2045367) Radio
Armstrong; where?: 1700 [Radio] ID = 2045367 1400x787
Select picture or schematic to display from thumbnails on the right and click for download.
For model 1700, Armstrong; (where?)

Country:  Italy
Manufacturer / Brand:  Armstrong; (where?)
Year: 1955 ?? Category: Broadcast Receiver - or past WW2 Tuner

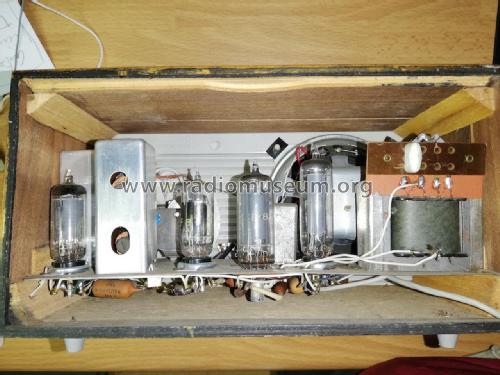

Valves / Tubes 5: 6BE6 6BA6 EBC91 35QL6 35A3
schematic requested
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 120-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 1700 - Armstrong; where?
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 240 x 140 x 110 mm / 9.4 x 5.5 x 4.3 inch
Notes

Esiste anche una variante in plastica.

Collectors' prices

Model page created by Romolo Amazio. See "Data change" for further contributors.



All listed radios etc. from Armstrong; (where?)
Here you find 14 models, 14 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
