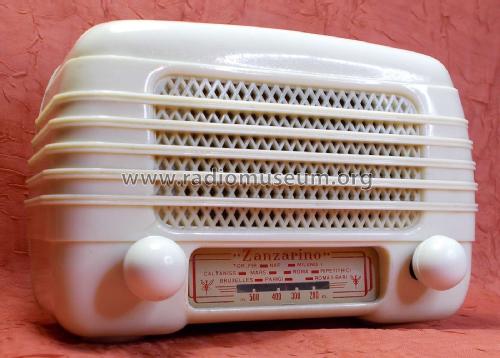

Zanzarino ; La Sinfonica; Milano (ID = 2316501) Radio
La Sinfonica; Milano: Zanzarino [Radio] ID = 2316501 1400x1004
Select picture or schematic to display from thumbnails on the right and click for download.
For model Zanzarino, La Sinfonica; Milano

Country:  Italy
Manufacturer / Brand:  La Sinfonica; Milano
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: ECH81 6AQ5 35X4
Main principle TRF with regeneration
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out 1.5 W (unknown quality)
from Radiomuseum.org Model: Zanzarino - La Sinfonica; Milano
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 140 x 100 x 70 mm / 5.5 x 3.9 x 2.8 inch
Notes Radio miniatura. Simile al modello Cucciolo, varia solo per colore e denominazione.
ACHTUNG, Spartrafo!
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in -- Original prospect or advert (TV-Radio Amatori, n.7 anno II, luglio-agosto 1956)

Model page created by Carlo Gerli. See "Data change" for further contributors.
