Grillo Commutatore di gamma sul retro

Grillo ; ART - Panart; Milano (ID = 1766291) Radio Grillo ; ART - Panart; Milano (ID = 1766292) Radio
Grillo ; ART - Panart; Milano (ID = 1766294) Radio Grillo ; ART - Panart; Milano (ID = 1766296) Radio
Grillo ; ART - Panart; Milano (ID = 1766297) Radio Grillo ; ART - Panart; Milano (ID = 1766304) Radio

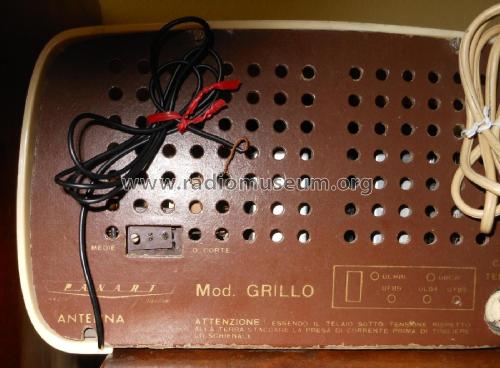

Grillo ; ART - Panart; Milano (ID = 1766305) Radio Grillo ; ART - Panart; Milano (ID = 1766307) Radio
Grillo ; ART - Panart; Milano (ID = 1766308) Radio
Use red slider bar for more.
Grillo ; ART - Panart; Milano (ID = 1766291) Radio
ART - Panart; Milano: Grillo [Radio] ID = 1766291 1400x812
Select picture or schematic to display from thumbnails on the right and click for download.
For model Grillo Commutatore di gamma sul retro, ART - Panart; Milano

Country:  Italy
Manufacturer / Brand:  ART - Panart; Milano
Brand

Depaphon
Year: 1957 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH81 UF89 UBC81 UL84 UY85
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out
from Radiomuseum.org Model: Grillo [Commutatore di gamma sul retro] - ART - Panart; Milano
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 260 x 140 x 105 mm / 10.2 x 5.5 x 4.1 inch
Notes

Si differenzia dai modelli Grillo 1955-56 e da quello 1957 per avere 2 manopole sul frontale e il commutatore di gamma sul retro.

Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)

Model page created by Osvaldo Forlani. See "Data change" for further contributors.
