88 Ch= RE-35
Arvin, brand of Noblitt-Sparks Industries
- Country
- United States of America (USA)
- Manufacturer / Brand
- Arvin, brand of Noblitt-Sparks Industries
- Year
- 1938–1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 33149
Beitman

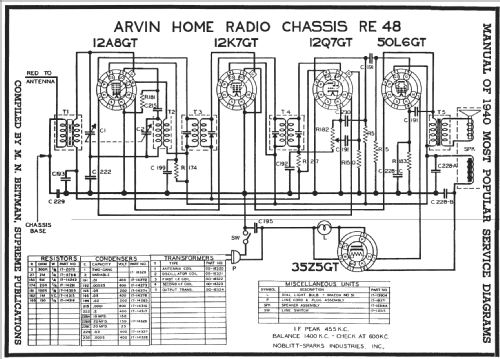

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Number of Transistors
- Semiconductors
- M49B
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles 105 - 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 88 Ch= RE-35 - Arvin, brand of Noblitt-Sparks
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 14.25 x 10.75 x 11.125 inch / 362 x 273 x 283 mm
- Notes
- The Arvin model 88 is a 5-tube superhet table model radio with electric phonograph enclosed - in a Walnut cabinet with grain decorative treatment. It plays 10" and 12" records and radio broadcast with band coverage of 540 to 1725 kc. Edge-lighted tuning dial. The M49B is a plug-in resistor. The model is rated 60 watts.
The model 88 from the year 1938 for 1939 can be seen in a flier "New 1940 Arvin Radios". But this page has not this title - it is probably a sale out for a reduced price of $ 39.95.
- External source of data
- Ernst Erb
- Source of data
- Collector's Guide to Antique Radios 4. Edition
- Circuit diagram reference
- Rider's Perpetual, Volume 9 = 1938 and before
- Literature/Schematics (1)
- Table Top Radios Vol. 4 Stein 2003 (page 49.)
