100B

100B; Asa, Turku (ID = 1407307) Radio 100B; Asa, Turku (ID = 1141716) Radio
100B; Asa, Turku (ID = 1407314) Radio 100B; Asa, Turku (ID = 1687427) Radio
100B; Asa, Turku (ID = 1696841) Radio 100B; Asa, Turku (ID = 2090741) Radio
100B; Asa, Turku (ID = 2090742) Radio 100B; Asa, Turku (ID = 2090743) Radio
100B; Asa, Turku (ID = 2090744) Radio 100B; Asa, Turku (ID = 2090745) Radio
Use red slider bar for more.
100B; Asa, Turku (ID = 1407307) Radio
Asa, Turku: 100B [Radio] ID = 1407307 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 100B, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH41 EAF42 EAF42 EL41 AZ41
Main principle Superheterodyne (common); ZF/IF 485 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)

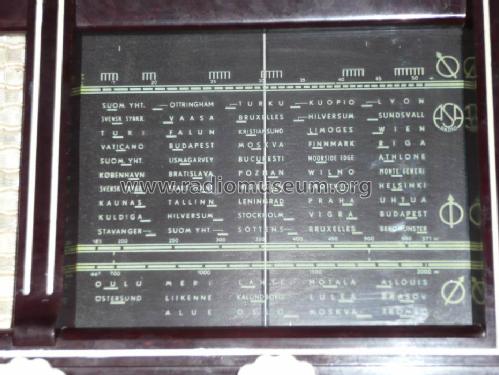

Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125: 220; 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 100B - Asa, Turku
Material Bakelite case
Shape Tablemodel, with any shape - general.

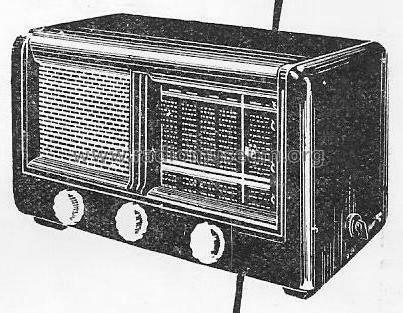

Mentioned in -- Original prospect or advert
Literature/Schematics (1) -- Schematic

Model page created by Lasse Nirhamo. See "Data change" for further contributors.
