101U

101U; Asa, Turku (ID = 258632) Radio

101U; Asa, Turku (ID = 258633) Radio

101U; Asa, Turku (ID = 258635) Radio

101U; Asa, Turku (ID = 258636) Radio

101U; Asa, Turku (ID = 258637) Radio
101U; Asa, Turku (ID = 2457199) Radio 101U; Asa, Turku (ID = 2457200) Radio
101U; Asa, Turku (ID = 1377445) Radio
Use red slider bar for more.

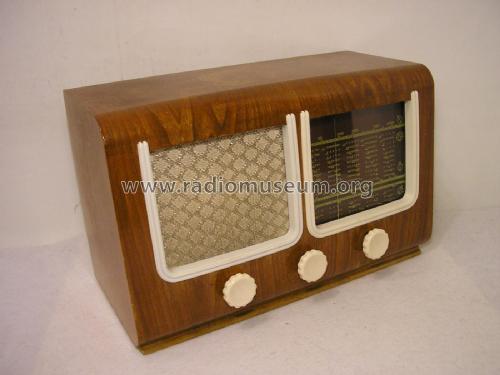

101U; Asa, Turku (ID = 2457199) Radio
Asa, Turku: 101U [Radio] ID = 2457199 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model 101U, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH41 UAF41 UAF41 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 485 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110; 125: 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 101U - Asa, Turku
Material Bakelite case
Shape Tablemodel, with any shape - general.
Mentioned in -- Original prospect or advert
Literature/Schematics (1) -- Schematic

Model page created by Lasse Nirhamo. See "Data change" for further contributors.



All listed radios etc. from Asa, Turku
Here you find 296 models, 209 with images and 126 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
