103P

103P; Asa, Turku (ID = 258639) Radio

103P; Asa, Turku (ID = 258640) Radio

103P; Asa, Turku (ID = 258641) Radio

103P; Asa, Turku (ID = 258642) Radio
103P; Asa, Turku (ID = 1263330) Radio 103P; Asa, Turku (ID = 1361598) Radio
103P; Asa, Turku (ID = 1361599) Radio 103P; Asa, Turku (ID = 1361600) Radio
103P; Asa, Turku (ID = 1361601) Radio 103P; Asa, Turku (ID = 1361602) Radio
Use red slider bar for more.

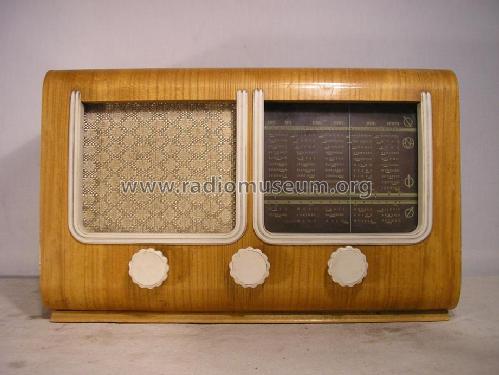

103P; Asa, Turku (ID = 1263330) Radio
Asa, Turku: 103P [Radio] ID = 1263330 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 103P, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner

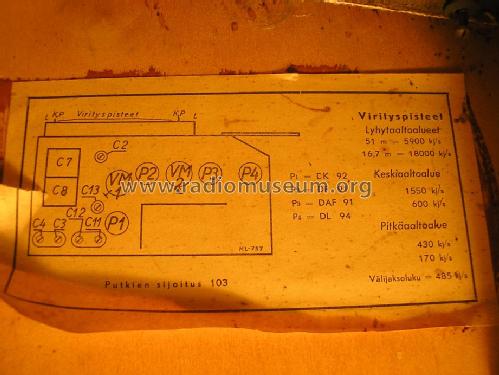

Valves / Tubes 4: DK92 DF91 DAF91 DL94
Main principle Superheterodyne (common); ZF/IF 485 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)

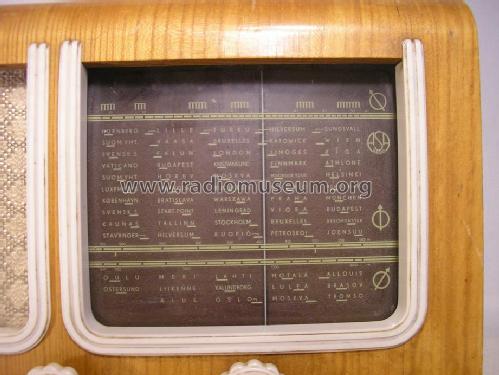

Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries / 95 & 1,5 or 2,0 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 103P - Asa, Turku

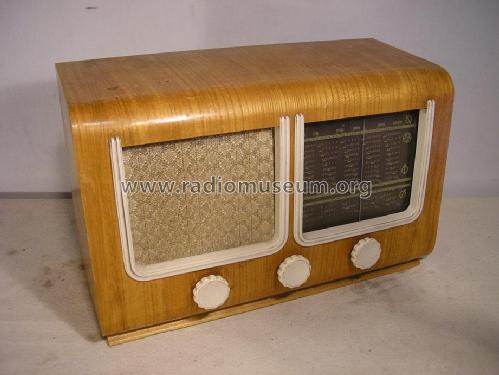

Material Wooden case
Shape Tablemodel, with any shape - general.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Lasse Nirhamo. See "Data change" for further contributors.
