105P

105P; Asa, Turku (ID = 258643) Radio

105P; Asa, Turku (ID = 258644) Radio

105P; Asa, Turku (ID = 258645) Radio

105P; Asa, Turku (ID = 258646) Radio

105P; Asa, Turku (ID = 258647) Radio
105P; Asa, Turku (ID = 1303964) Radio 105P; Asa, Turku (ID = 1366352) Radio
105P; Asa, Turku (ID = 1366353) Radio 105P; Asa, Turku (ID = 1366354) Radio
105P; Asa, Turku (ID = 1366355) Radio
Use red slider bar for more.

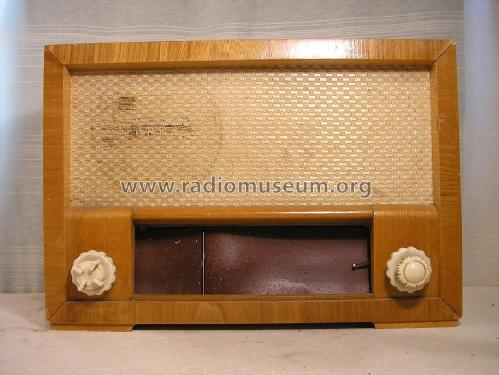

105P; Asa, Turku (ID = 1303964) Radio
Asa, Turku: 105P [Radio] ID = 1303964 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 105P, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: DF91 DK92 DF91 DAF91 DL94
Main principle Superheterodyne (common); ZF/IF 485 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries / 95 & 1,5 or 2,0 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 105P - Asa, Turku
Material Wooden case
Shape Tablemodel, with any shape - general.

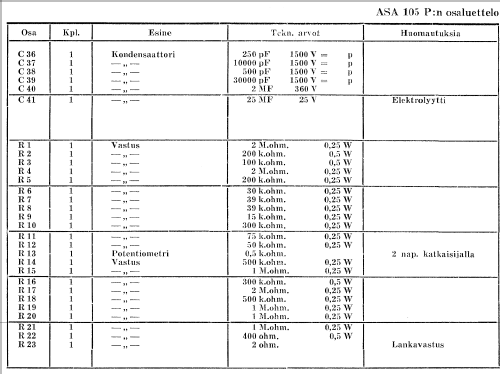

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Lasse Nirhamo. See "Data change" for further contributors.
