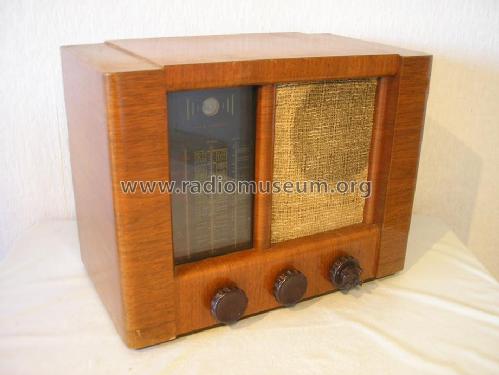

417; Asa, Turku (ID = 1460002) Radio 417; Asa, Turku (ID = 1567736) Radio

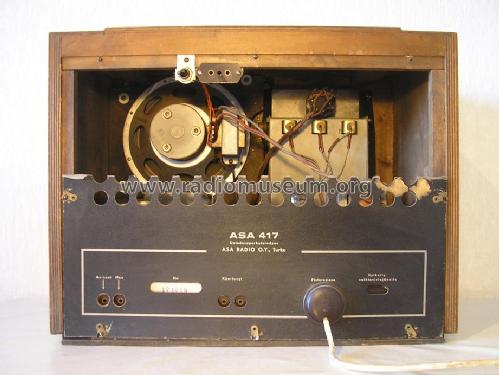

417; Asa, Turku (ID = 1567737) Radio 417; Asa, Turku (ID = 1567738) Radio
417; Asa, Turku (ID = 1567739) Radio 417; Asa, Turku (ID = 1567740) Radio
417; Asa, Turku (ID = 1703360) Radio 417; Asa, Turku (ID = 1703361) Radio
417; Asa, Turku (ID = 1703362) Radio
Use red slider bar for more.
417; Asa, Turku (ID = 1460002) Radio
Asa, Turku: 417 [Radio] ID = 1460002 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 417, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: EK2 EF9 EBC3 EL3N EM4 AZ1
Main principle Superheterodyne (common)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 225 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 417 - Asa, Turku
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 480 x 370 x 270 mm / 18.9 x 14.6 x 10.6 inch

Model page created by Juha Lahtinen Liljeroos. See "Data change" for further contributors.
