435P

435P; Asa, Turku (ID = 1277290) Radio 435P; Asa, Turku (ID = 1277291) Radio
435P; Asa, Turku (ID = 1261141) Radio 435P; Asa, Turku (ID = 1277287) Radio
435P; Asa, Turku (ID = 1277289) Radio 435P; Asa, Turku (ID = 1277292) Radio
Use red slider bar for more.

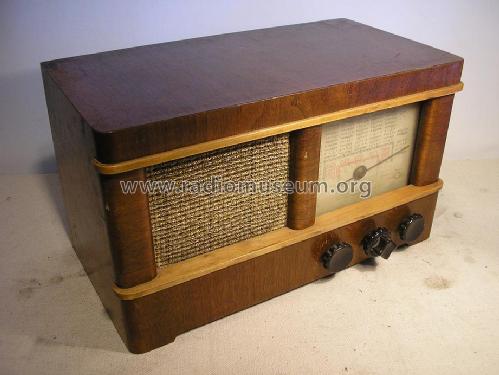

435P; Asa, Turku (ID = 1277290) Radio
Asa, Turku: 435P [Radio] ID = 1277290 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 435P, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DCH11 DF11 DAF11 DL11
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: 435P - Asa, Turku
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 443 x 255 x 235 mm / 17.4 x 10 x 9.3 inch

Model page created by Juha Lahtinen Liljeroos. See "Data change" for further contributors.



All listed radios etc. from Asa, Turku
Here you find 296 models, 209 with images and 126 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
