573; Asa, Turku (ID = 1732409) Radio

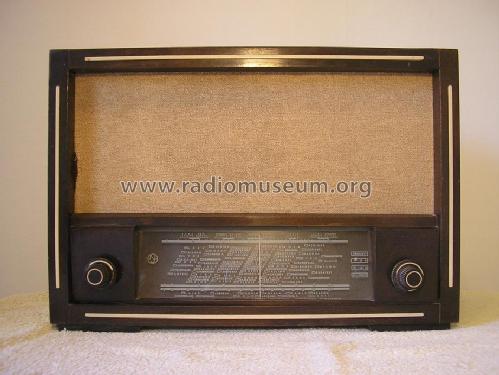

Asa, Turku: 573 [Radio] ID = 1732409 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model 573, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner

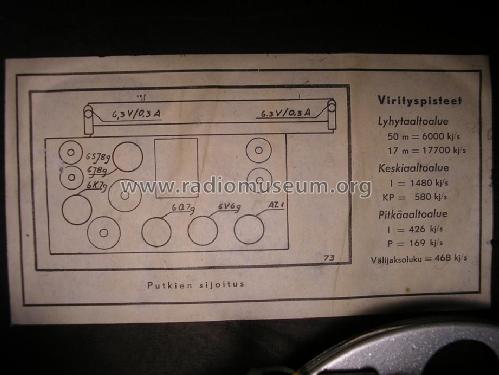

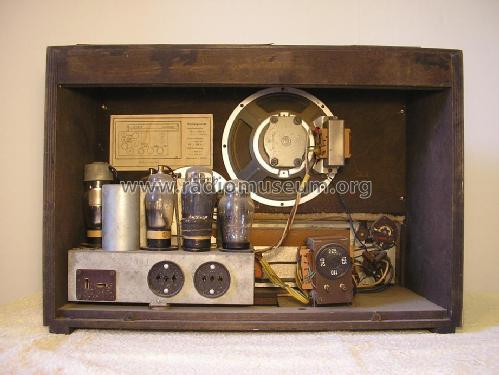

Valves / Tubes 5: 6J8G 6K7G 6Q7G 6V6G AZ1
Main principle Superheterodyne (common); ZF/IF 468 kHz

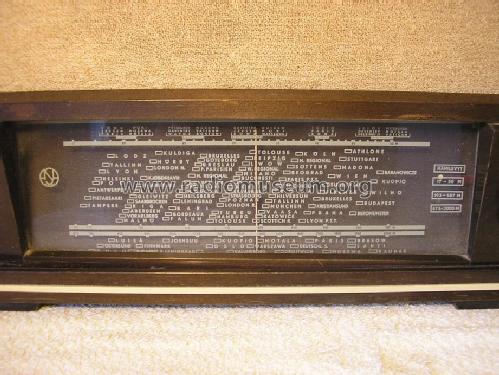

Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 225; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 573 - Asa, Turku

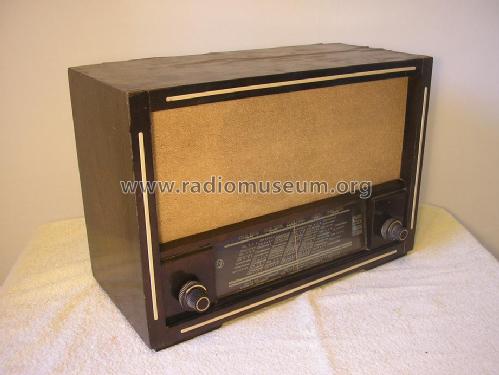

Material Wooden case
Shape Tablemodel, with any shape - general.

Model page created by Timo Rantasaari. See "Data change" for further contributors.



All listed radios etc. from Asa, Turku
Here you find 296 models, 209 with images and 126 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
