Sesam 103 P

Sesam 103 P; Asa, Turku (ID = 2058740) Radio
Use red slider bar for more.
Sesam 103 P; Asa, Turku (ID = 2058740) Radio

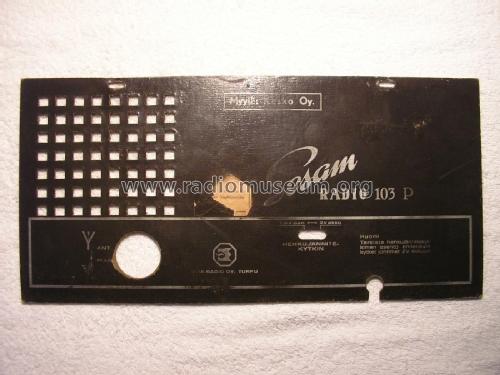

Asa, Turku: Sesam 103 P [Radio] ID = 2058740 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sesam 103 P, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK92 DF91 DAF91 DL94
Main principle Superheterodyne (common); ZF/IF 485 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage and/or dry batteries / 1,5 or 2 & 95 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Sesam 103 P - Asa, Turku
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 440 x 275 x 205 mm / 17.3 x 10.8 x 8.1 inch

Model page created by Timo Rantasaari. See "Data change" for further contributors.
