Sesam 586

Sesam 586; Asa, Turku (ID = 951995) Radio Sesam 586; Asa, Turku (ID = 951996) Radio
Sesam 586; Asa, Turku (ID = 951997) Radio Sesam 586; Asa, Turku (ID = 951998) Radio
Sesam 586; Asa, Turku (ID = 952000) Radio Sesam 586; Asa, Turku (ID = 952001) Radio
Sesam 586; Asa, Turku (ID = 952002) Radio Sesam 586; Asa, Turku (ID = 952003) Radio
Use red slider bar for more.

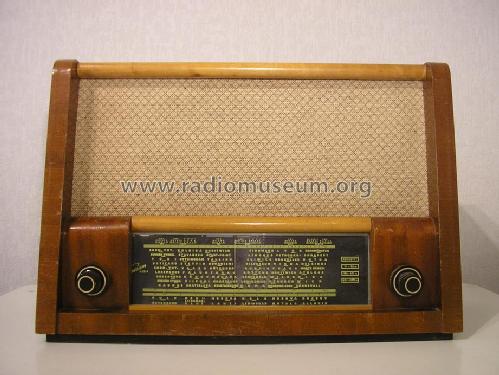

Sesam 586; Asa, Turku (ID = 951995) Radio
Asa, Turku: Sesam 586 [Radio] ID = 951995 922x692
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sesam 586, Asa, Turku

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH21 EF22 EF22 EBL21 AZ11
Main principle Super-Heterodyne (Super in general); ZF/IF 485 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 225; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Sesam 586 - Asa, Turku
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 345 x 250 mm / 19.7 x 13.6 x 9.8 inch
Notes Seller: Kesko Oy.
Price in first year of sale 19'600.00 FIM

Model page created by Timo Rantasaari. See "Data change" for further contributors.



All listed radios etc. from Asa, Turku
Here you find 295 models, 205 with images and 124 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
