Veera VRLK V471

Veera VRLK V471; Asa, Turku (ID = 548262) Commercial Re

Veera VRLK V471; Asa, Turku (ID = 548263) Commercial Re

Veera VRLK V471; Asa, Turku (ID = 548265) Commercial Re

Veera VRLK V471; Asa, Turku (ID = 548266) Commercial Re
Veera VRLK V471; Asa, Turku (ID = 235928) Commercial Re Veera VRLK V471; Asa, Turku (ID = 235930) Commercial Re
Use red slider bar for more.
Veera VRLK V471; Asa, Turku (ID = 235928) Commercial Re
Asa, Turku: Veera VRLK V471 [Commercial Re] ID = 235928 933x591
Select picture or schematic to display from thumbnails on the right and click for download.
For model Veera VRLK V471, Asa, Turku:

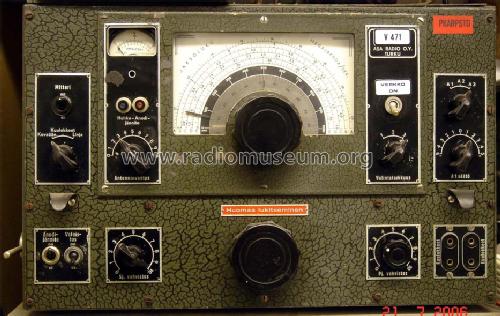

Veera Front Panel

Country:  Finland
Manufacturer / Brand:  Asa, Turku
Year: 1944 ? Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 9: EF9 ECH3 EF9 EF9 EF9 EBC3 EF9 EL2 AZ1
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110/220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Veera VRLK V471 - Asa, Turku
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 480 x 290 x 330 mm / 18.9 x 11.4 x 13 inch
Notes HF communiction receiver 233-570 kHz and 1490-20200 kHz in 5 bands. The radio is National NC-100 XA clone.
Net weight (2.2 lb = 1 kg) 27 kg / 59 lb 7.5 oz (59.471 lb)
Source of data - - Data from my own collection

Model page created by Juhani Makivuoti † 21.09.13. See "Data change" for further contributors.
