• Country
• Spain

• Manufacturer / Brand
• Askar, Ascar; Irún

• Year
• 1940 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 314765

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

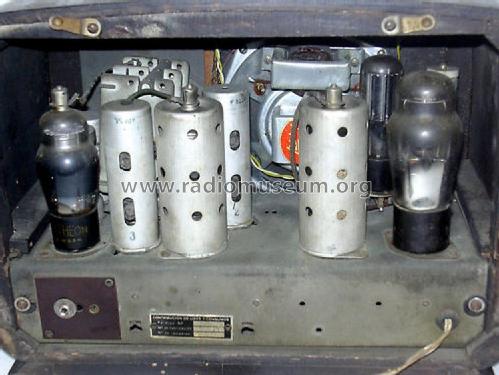

• 6A7 6D6 75 43 25Z5

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

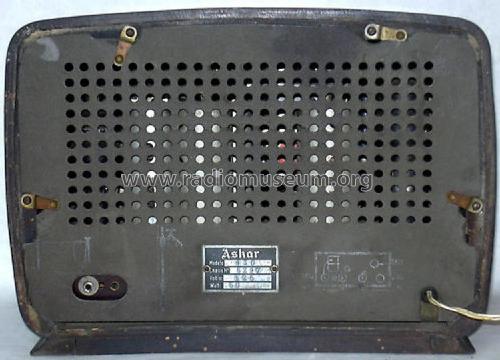

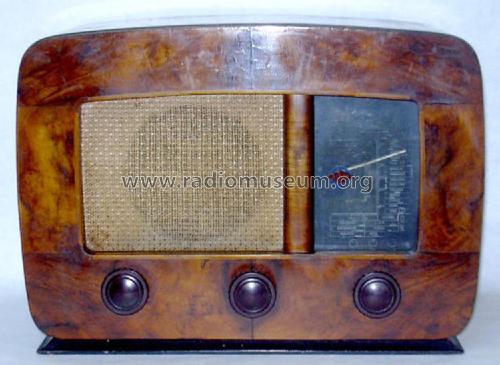

• Model: 430 - Askar, Ascar; Irún

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 330 x 240 x 190 mm / 13 x 9.4 x 7.5 inch

• Notes

• Askar 430

• Mentioned in
• Radios españolas Joan Julià Enrich (Radios Españolas: figura 3, página 43)

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
