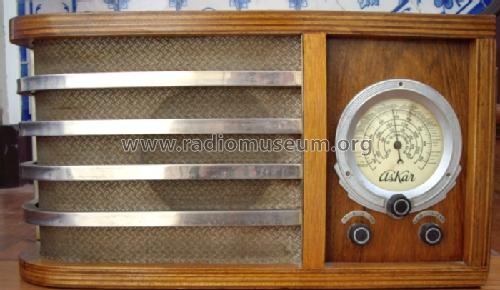

For model 45, Askar, Ascar; Irún

Country:  Spain
Manufacturer / Brand:  Askar, Ascar; Irún
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6K7G 6A7 6D6 75 42 80
Main principle Superhet with RF-stage
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage AC/DC-set / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 45 - Askar, Ascar; Irún
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Price in first year of sale 550.00 ESP

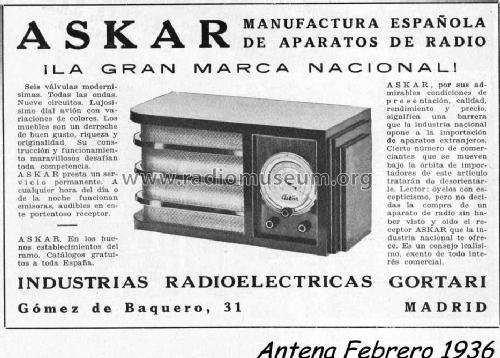

Literature/Schematics (1) Anuncio revista Antena Febrero 1936

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.



All listed radios etc. from Askar, Ascar; Irún
Here you find 92 models, 81 with images and 32 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
