440U
Askar, Ascar; Irún
- Country
- Spain
- Manufacturer / Brand
- Askar, Ascar; Irún
- Year
- 1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 81267
PUBLICADA EN REVISTA DE RADIO
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- AC/DC-set / 110, 127 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 440U - Askar, Ascar; Irún
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 300 x 200 x 145 mm / 11.8 x 7.9 x 5.7 inch
- Notes
-
Askar 440-U
- Net weight (2.2 lb = 1 kg)
- 3 kg / 6 lb 9.7 oz (6.608 lb)
- Price in first year of sale
- 1,899.80 Pts.
- Mentioned in

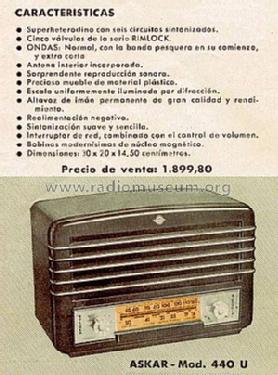

- Folleto Askar novedades 1952
- Author
- Model page created by Juan Antonio Pardo-Alonso. See "Data change" for further contributors.
