• Country
• Spain

• Manufacturer / Brand
• Askar, Ascar; Irún

• Year
• 1953 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 81266

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UF41 UBC41 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110, 127 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

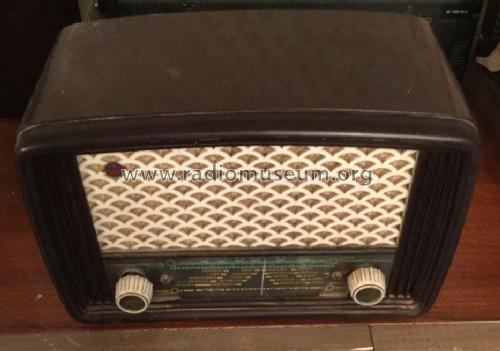

• Model: 446U - Askar, Ascar; Irún

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 300 x 200 x 160 mm / 11.8 x 7.9 x 6.3 inch

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Price in first year of sale
• 1,695.00 Pts.

• Author
• Model page created by Juan Antonio Pardo-Alonso. See "Data change" for further contributors.

• Other Models

• Here you find 127 models, 121 with images and 35 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
