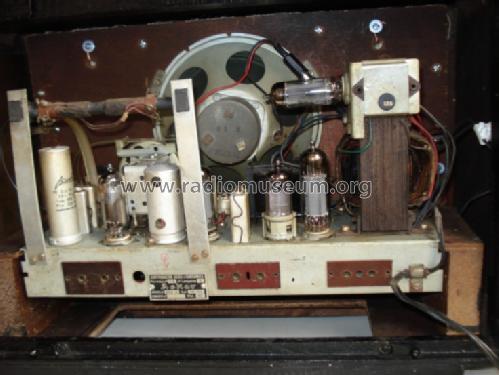

454A; Askar, Ascar; Irún (ID = 542788) Radio 454A; Askar, Ascar; Irún (ID = 542789) Radio
454A; Askar, Ascar; Irún (ID = 114576) Radio 454A; Askar, Ascar; Irún (ID = 542790) Radio
454A; Askar, Ascar; Irún (ID = 747799) Radio 454A; Askar, Ascar; Irún (ID = 747800) Radio
454A; Askar, Ascar; Irún (ID = 1875260) Radio 454A; Askar, Ascar; Irún (ID = 1875262) Radio
Use red slider bar for more.
454A; Askar, Ascar; Irún (ID = 1647072) Radio
Askar, Ascar; Irún: 454A [Radio] ID = 1647072 798x549
Select picture or schematic to display from thumbnails on the right and click for download.
For model 454A, Askar, Ascar; Irún

Country:  Spain
Manufacturer / Brand:  Askar, Ascar; Irún
Year: 1953–1955 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EBF80 EBC41 EL84 DM71 EZ80
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz; 2 AF stage(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 150 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: 454A - Askar, Ascar; Irún
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 450 x 300 x 210 mm / 17.7 x 11.8 x 8.3 inch
Notes Onda Media de:185 a 580 m. Onda Pesquera de: 59 a 187 m. Onda Corta de: 15 a 51 m.
Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Collectors' prices
Source of data -- Original-techn. papers.
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Juan Antonio Pardo-Alonso. See "Data change" for further contributors.
