• Country
• Spain

• Manufacturer / Brand
• Askar, Ascar; Irún

• Year
• 1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 175784

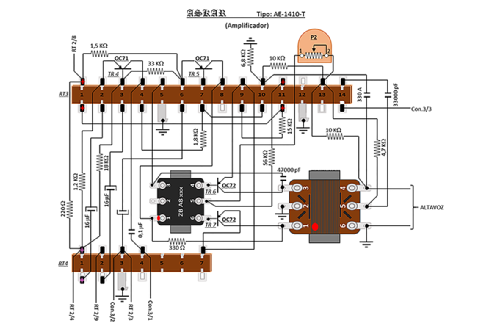

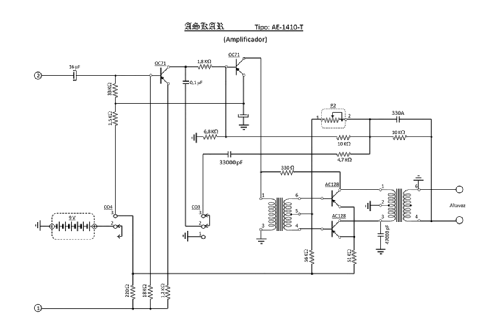

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• OC170 OC45 OC45 OC71 OC71 OC73 OC73 OA79

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Dry Batteries / D: 6 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

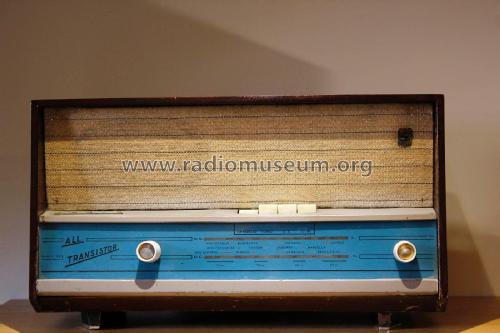

• Model: Sobremesa AE-1410-T - Askar, Ascar; Irún

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 415 x 236 x 185 mm / 16.3 x 9.3 x 7.3 inch

• Notes

• En este caso Sobremesa no es una clase sino el tipo dado por el fabricante.

  Precio catálogo julio 1963: 3.020 pts. + I.L. 339,75 = PVP 3.359,75 pts.

• Literature/Schematics (1)
• Anuncio La Vanguardia Española 6 Octubre 1962

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
