12395 HC

12395 HC; Astor brand, Radio (ID = 761376) Car Radio

12395 HC; Astor brand, Radio (ID = 761377) Car Radio

12395 HC; Astor brand, Radio (ID = 2056371) Car Radio
Use red slider bar for more.
12395 HC; Astor brand, Radio (ID = 761376) Car Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1938 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 5: 6A8 6K7 6B8 41 84
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: 12395 HC - Astor brand, Radio Corporation
Material Metal case
Notes This model uses mechanical push putton tuning. It uses a non-synchronous vibrator power supply. Price below did not include sales tax.
Price in first year of sale 19.00 Aus£

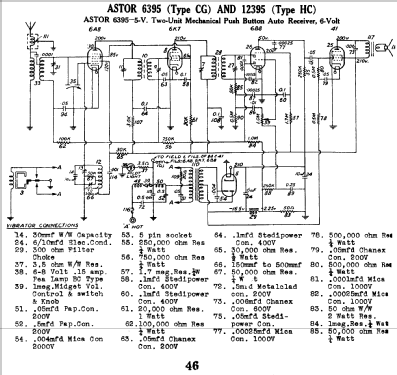

Circuit diagram reference Australian Official Radio Service Manual Vol. III
Literature/Schematics (1) Mingay's Radio Diagram & I.F. Index

Model page created by Stuart Irwin. See "Data change" for further contributors.
