For model 170 AB, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne:
Advertisement from The Mercury, May 25, 1935 P7

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6D6 6A7 6D6 6D6 75 42 80
Main principle Superhet with RF-stage; ZF/IF 456 kHz; 2 AF stage(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 170 AB - Astor brand, Radio Corporation
Material Wooden case

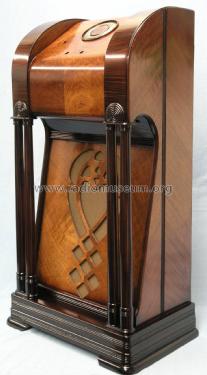

Shape Console, Lowboy (legs < 50 %).
Notes

Chassis AB also used in the Model 190 with the final IF transformer replaced with an iron cored version.

Price in first year of sale 42.00 Aus£
Mentioned in HRSA Astor Book Vol.2, Page 108

Model page created by Stuart Irwin. See "Data change" for further contributors.
