Baby GRP

Baby GRP; Astor brand, Radio (ID = 885016) Radio

Baby GRP; Astor brand, Radio (ID = 885019) Radio

Baby GRP; Astor brand, Radio (ID = 885021) Radio
Baby GRP; Astor brand, Radio (ID = 1411250) Radio Baby GRP; Astor brand, Radio (ID = 1411243) Radio
Baby GRP; Astor brand, Radio (ID = 1411244) Radio Baby GRP; Astor brand, Radio (ID = 1411245) Radio
Baby GRP; Astor brand, Radio (ID = 1411246) Radio Baby GRP; Astor brand, Radio (ID = 1411247) Radio
Baby GRP; Astor brand, Radio (ID = 1411248) Radio Baby GRP; Astor brand, Radio (ID = 1411251) Radio

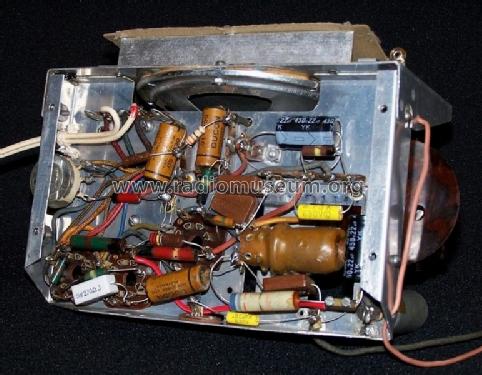

Baby GRP; Astor brand, Radio (ID = 1411252) Radio
Use red slider bar for more.
Baby GRP; Astor brand, Radio (ID = 1411250) Radio
Astor brand, Radio: Baby GRP [Radio] ID = 1411250 933x688
Select picture or schematic to display from thumbnails on the right and click for download.
For model Baby GRP, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: 6G8G 6V6GT 6X5GT
Main principle TRF with diode detector; 2 AF stage(s); Reflex
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 200-220; 220-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Baby GRP - Astor brand, Radio Corporation
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Notes

This is a version of the model GR designed for use in Western Australia which had 40Hz mains.

Colours availble (official): Walnut, Cream, Champagne, Green, Amber & Red.

Collectors' prices
Circuit diagram reference Australian Official Radio Service Manual Vol. VII
Literature/Schematics (1) - - Manufacturers Literature (Astor Technical Bulletin GR-1 & GRP-1, 25/5/1948.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
