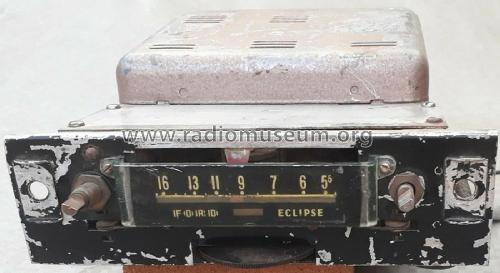

Car Radio Ford FK

Car Radio Ford FK; Astor brand, Radio (ID = 2093198) Car Radio

Car Radio Ford FK; Astor brand, Radio (ID = 2093199) Car Radio

Car Radio Ford FK; Astor brand, Radio (ID = 2093200) Car Radio
Use red slider bar for more.
Car Radio Ford FK; Astor brand, Radio (ID = 2093198) Car Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1953 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 6: 6BA6 6BE6 6BA6 6AV6 6V6GT 6X5GT
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Car Radio Ford FK - Astor brand, Radio Corporation
Material Metal case
Shape Chassis only or for «building in»
Notes

6V car  Radio with remote control head, Designed for Ford brand vehicles.

Literature/Schematics (1) AORSM Vol 12 Page 84
Literature/Schematics (2) J.R. Publications Car Radio Service Handbook (Page A17)

Model page created by Gary Cowans. See "Data change" for further contributors.
