Concertmaster GRW

Concertmaster GRW; Astor brand, Radio (ID = 2336703) Radio Concertmaster GRW; Astor brand, Radio (ID = 2379212) Radio
Use red slider bar for more.
Concertmaster GRW; Astor brand, Radio (ID = 2336703) Radio

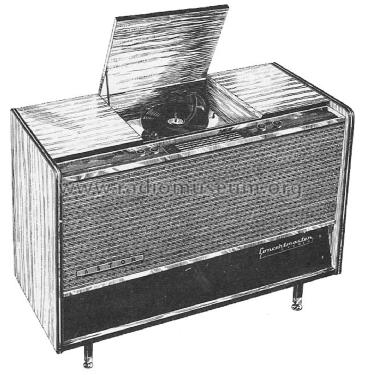

Astor brand, Radio: Concertmaster GRW [Radio] ID = 2336703 1400x1437
Select picture or schematic to display from thumbnails on the right and click for download.
For model Concertmaster GRW, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne:
From service manual front cover.

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1961–1964 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6AN7 6N8 12AX7 6M5 6M5 6V4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker 2 Loudspeakers / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: Concertmaster GRW - Astor brand, Radio Corporation
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 40 x 29 x 18 inch / 1016 x 737 x 457 mm
Notes

The "Astor" Concertmaster stereogram features two power-matched audio amplifiers each with 8" Rola 8MX twin-cone matched speakers A full sized 6-valve superhety broadcast receiver with automatic volume control to reduce fading on weak stations.

Four-speed Collaro "Studio" record changer with Ronette Stereo-105 cartridge

Polished wooden cabinet by Gainsborough with Maple, Medium Walnut or Mahogany tonings finished in Polyester.

Same cabinet & styling as Concertmaster model G 2B.

Price in first year of sale 131.25 AUS £
Mentioned in Astor Service Data GRW-1, 30/3/1961.
Literature/Schematics (1) J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page A47.)

Model page created by Martin Kent. See "Data change" for further contributors.
