Electric Transistor M-4C

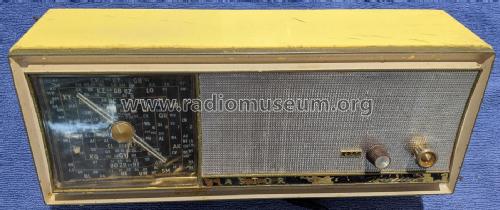

Electric Transistor M-4C; Astor brand, Radio (ID = 2052633) Radio
Electric Transistor M-4C; Astor brand, Radio (ID = 2093059) Radio Electric Transistor M-4C; Astor brand, Radio (ID = 2093069) Radio
Use red slider bar for more.
Electric Transistor M-4C; Astor brand, Radio (ID = 2093059) Radio
Astor brand, Radio: Electric Transistor M-4C [Radio] ID = 2093059 1400x1888
Select picture or schematic to display from thumbnails on the right and click for download.
For model Electric Transistor M-4C, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne:
Astor Print Advertise

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1963/1964 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2N412 2N410 2N410 2N406 2N406 OC74 OC74 1N295 1N295 AR30 AR30
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 240; 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Electric Transistor M-4C - Astor brand, Radio Corporation
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 13.75 x 5.325 x 4.325 inch / 349 x 135 x 110 mm
Notes

Astor's first mains powered transistor mantel. Has the same style & case of the battery powered model HQV.

  • Speaker Rola Type 5F.
  • Colours available: Wedgewood, Spruce, Wattle, Charcoal, Cherry, Cinnamon, Willow, Grey, Flamingo & Squirrel.
Price in first year of sale 30.45 AUS £
Literature/Schematics (1) - - Manufacturers Literature (Astor Service Data M4C-1, 14/6/1963. (Also at KevinChant.com))
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (Supplement to Vol. 1, 1960, Page A30.)
Literature/Schematics (3) J.R. Publications Transistor Radio Service Handbook (A Series Handbook, Page A67.)
Literature/Schematics (4) Mingay's Radio Electrical Weekly Price Service (REWPS) (Aug 1963 to Aug 1964.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
