Transistor Seven FSW

Transistor Seven FSW; Astor brand, Radio (ID = 2440297) Radio
Transistor Seven FSW; Astor brand, Radio (ID = 1423228) Radio Transistor Seven FSW; Astor brand, Radio (ID = 1423229) Radio
Transistor Seven FSW; Astor brand, Radio (ID = 1423230) Radio Transistor Seven FSW; Astor brand, Radio (ID = 1234443) Radio
Transistor Seven FSW; Astor brand, Radio (ID = 1234444) Radio Transistor Seven FSW; Astor brand, Radio (ID = 1234445) Radio
Transistor Seven FSW; Astor brand, Radio (ID = 1234446) Radio Transistor Seven FSW; Astor brand, Radio (ID = 1234447) Radio
Transistor Seven FSW; Astor brand, Radio (ID = 1407931) Radio Transistor Seven FSW; Astor brand, Radio (ID = 1407932) Radio
Use red slider bar for more.
Transistor Seven FSW; Astor brand, Radio (ID = 1423228) Radio
Astor brand, Radio: Transistor Seven FSW [Radio] ID = 1423228 930x750
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor Seven FSW, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne:

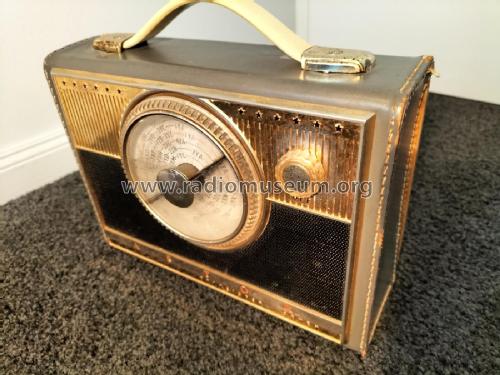

As purchased. Radio is not working

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1961–1965 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2N412 2N410 2N410 2N406 2N406 2N408 2N408 1N295 1N295
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: Transistor Seven FSW - Astor brand, Radio Corporation
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 8 x 7.25 x 3 inch / 203 x 184 x 76 mm
Notes

Astor FSW

BC portable having seven transistor and two diodes, housed in leather case in colours of grey, red, blue, tan or black.

Features: inbuilt aerial. Operates from one 9V battery. Speaker 3"; power output, 0.3W. Controls: on-off, tuning.

  • Speaker Rola Type 3C (15 ohms).
  • Battery Eveready Type 276P or equivalent.
  • Price includes battery.
  • Colours available in Grey, Red, Blue, American Tan & Black Texon.
Price in first year of sale 30.45 AUS £
Literature/Schematics (1) - - Manufacturers Literature (Astor Technical Bulletin FSW-1, 18/8/1961. (Also at KevinChant.com))
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (Vol. 1, 1960 Supplement, Page A27.)
Literature/Schematics (3) J.R. Publications Transistor Radio Service Handbook (A Series Handbook, Page A58.)
Literature/Schematics (4) Mingay's Radio Electrical Weekly Price Service (REWPS) (Feb 62 to Aug 65.)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
Here you find 843 models, 422 with images and 343 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Astor brand, Radio: Transistor Seven FSW
Threads: 1 | Posts: 1
Hits: 1229     Replies: 0
astor: FSW;
Brian Wilson
26.Mar.13
  1

This radio uses the same circuit board and schemetic as the GPN-A.
