G17AD Ch=G17 Series

G17AD Ch=G17 Series; Astor brand, Radio (ID = 2056689) Radio

G17AD Ch=G17 Series; Astor brand, Radio (ID = 2056690) Radio

G17AD Ch=G17 Series; Astor brand, Radio (ID = 2056691) Radio

G17AD Ch=G17 Series; Astor brand, Radio (ID = 2056693) Radio

G17AD Ch=G17 Series; Astor brand, Radio (ID = 2056695) Radio

G17AD Ch=G17 Series; Astor brand, Radio (ID = 2056696) Radio
G17AD Ch=G17 Series; Astor brand, Radio (ID = 2057526) Radio
Use red slider bar for more.
G17AD Ch=G17 Series; Astor brand, Radio (ID = 2057526) Radio
Astor brand, Radio: G17AD Ch=G17 Series [Radio] ID = 2057526 1400x1034
Select picture or schematic to display from thumbnails on the right and click for download.
For model G17AD Ch=G17 Series, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne:
From service manual cover courtesy of Andrew McCallum

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 15: AT319 AT319 AT319 1N295 1N295 AA119 SE4002 SE4002 AX6123 AX6123 BC109 BC109 BC108 BC108 AD161 AD161 AD162 AD162 AD100_Anodeon AD100_Anodeon AD100_Anodeon AD100_Anodeon
Main principle Superheterodyne (common); ZF/IF 455 kHz; 5 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker 4 Loudspeakers
Power out 8 W (unknown quality)
from Radiomuseum.org Model: G17AD Ch=G17 Series - Astor brand, Radio Corporation
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

This stereo radiogram has a four speed changer.  The power output is 4 watts per channel.  Provision for connecting tape recorder.

Colours available: Maple, Walnut, Mahogany & Teak.

Shares the same chassis with models G17AC & G17CH1

Literature/Schematics (1) - - Manufacturers Literature (Astor Service Data for Model G17AD-1, 19/10/1967.)

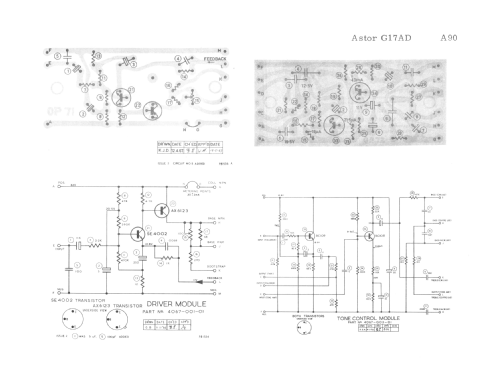

Literature/Schematics (2) -- Schematic (J.R. Publications Transistor Service Handbook Group G7, 1970, Page A90.)
