AT319

Information - Help
ID = 59701

Country:
Australia
Brand: Common type Australia tube/semicond.
Tube type:  Transistor   Frequency converter
Identical to AT319
Similar Tubes
Normally replaceable-slightly different:
  2N3693 ; AT311 ; AT318 ; AX1101 ; AX1102 ; SE1001 ; SE1002

Base Wires
Filament Solid State
Description

NPN planar silicon high-frequency transistor


Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip
6 x 5 x 4 mm / 0.24 x 0.20 x 0.16 inch
Weight 1 g / 0.04 oz
Information source

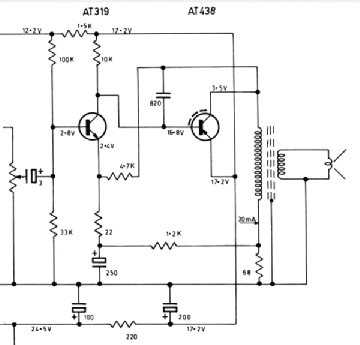

  AT319: (schematic)
Günther Stabe † 19.8.20

AT319: Own collection.
Stuart Irwin


AT319: (schematic)
Günther Stabe † 19.8.20



Usage in Models 4= 1967 ; 4= 1968 ; 10= 1969

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):18
