G18AE

G18AE; Astor brand, Radio (ID = 2097018) Radio

G18AE; Astor brand, Radio (ID = 2097019) Radio

G18AE; Astor brand, Radio (ID = 2097020) Radio

G18AE; Astor brand, Radio (ID = 2097021) Radio

G18AE; Astor brand, Radio (ID = 2097022) Radio
Use red slider bar for more.
G18AE; Astor brand, Radio (ID = 2097018) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: AT319 AT319 AT319 SE4002 or. AT327 SE4002 or. AT327 AX1130 AX1130 AC187 AC187 AC188 AC188 AD100_Anodeon AD100_Anodeon 1N295 1N295 AA119
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker 2 Loudspeakers / Ø 8 inch = 20.3 cm
Power out 4 W (unknown quality)
from Radiomuseum.org Model: G18AE - Astor brand, Radio Corporation
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

This stereo radiogram uses a four speed changer.  Power output is 2 watts per channel.  Provision for connecting tape recorder.

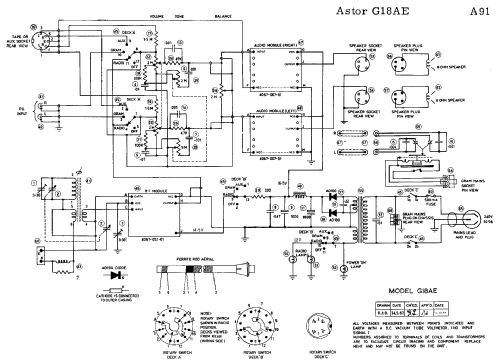

Literature/Schematics (1) - - Manufacturers Literature

Model page created by Stuart Irwin. See "Data change" for further contributors.
