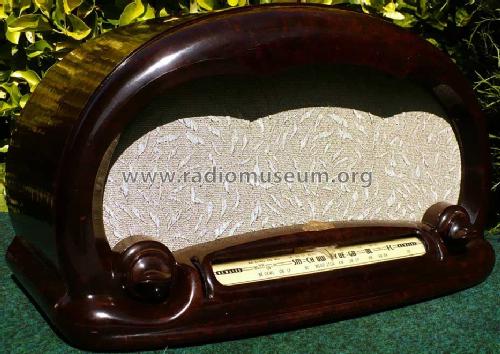

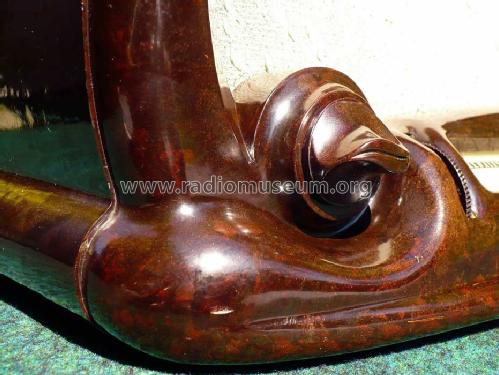

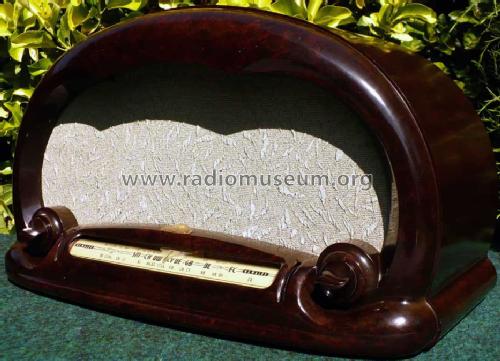

Harbour Bridge JN

Harbour Bridge JN; Astor brand, Radio (ID = 885023) Radio

Harbour Bridge JN; Astor brand, Radio (ID = 885024) Radio

Harbour Bridge JN; Astor brand, Radio (ID = 885025) Radio
Harbour Bridge JN; Astor brand, Radio (ID = 1111438) Radio Harbour Bridge JN; Astor brand, Radio (ID = 1111437) Radio
Harbour Bridge JN; Astor brand, Radio (ID = 1111439) Radio Harbour Bridge JN; Astor brand, Radio (ID = 1111440) Radio
Harbour Bridge JN; Astor brand, Radio (ID = 1111441) Radio Harbour Bridge JN; Astor brand, Radio (ID = 1111442) Radio
Harbour Bridge JN; Astor brand, Radio (ID = 1111443) Radio Harbour Bridge JN; Astor brand, Radio (ID = 2420761) Radio
Use red slider bar for more.
Harbour Bridge JN; Astor brand, Radio (ID = 1111438) Radio
Astor brand, Radio: Harbour Bridge JN [Radio] ID = 1111438 933x593
Select picture or schematic to display from thumbnails on the right and click for download.
For model Harbour Bridge JN, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne:
From Ebay AU , via Robert Bowden VK2ZFK / VK2BEE

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6U7G 6J8GA 6U7G 6B6G 6V6GT 5Y3GT
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 200-220; 220-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: Harbour Bridge JN - Astor brand, Radio Corporation
Material Bakelite case
Shape Tablemodel, low profile (big size).
Price in first year of sale 37.00 Aus£
Collectors' prices
Source of data - - Data from my own collection
Circuit diagram reference Australian Official Radio Service Manual Vol. VII
Literature/Schematics (1) - - Manufacturers Literature (Astor Technical Bulletin JN-1, 19/5/1948.)
Literature/Schematics (2) Australian Official Radio Service Manual AORSM (Volume 7, 1949, Page 57.)

Model page created by Peter Hughes. See "Data change" for further contributors.



All listed radios etc. from Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
Here you find 823 models, 301 with images and 342 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
