Mickey KL

Mickey KL; Astor brand, Radio (ID = 786323) Radio

Mickey KL; Astor brand, Radio (ID = 786324) Radio

Mickey KL; Astor brand, Radio (ID = 786325) Radio
Mickey KL; Astor brand, Radio (ID = 1348656) Radio Mickey KL; Astor brand, Radio (ID = 1348657) Radio
Mickey KL; Astor brand, Radio (ID = 1505828) Radio
Use red slider bar for more.
Mickey KL; Astor brand, Radio (ID = 1348656) Radio

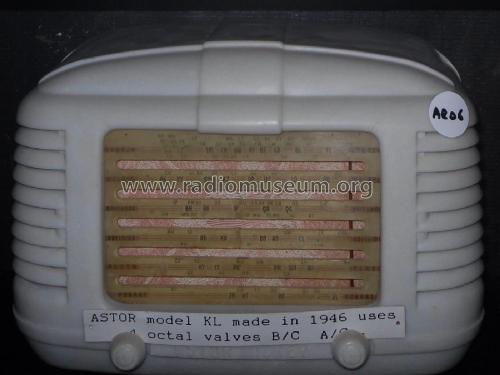

Astor brand, Radio: Mickey KL [Radio] ID = 1348656 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mickey KL, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1946/1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6A8G 6B8G 6V6GT 5Y3G
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s); Reflex
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 200-220; 220-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Mickey KL - Astor brand, Radio Corporation
Shape Tablemodel, with any shape - general.
Notes

The 6B8G is reflexed as the I.F. amplifier and the 1st A.F. amplifier.

Colours available: Walnut, Green, Blue, Champagne, Ivory, Chinese Red, Mahogany, Marble Champagne & Marble Ivory

In some sets 5Y3GT replaced by 6X5GT. Some modifications required. (KL-2)

Circuit diagram reference Australian Official Radio Service Manual Vol. V
Mentioned in AUS-Just Astor p. 152
Literature/Schematics (1) Mingay's Radio Diagram & I.F. Index
Literature/Schematics (2) - - Manufacturers Literature (Astor Technical Bulletins KL-1, 20/6/1946; KL-2, 18/7/1946 & KL-3, 4/11/1946.)
