• Country
• Australia

• Manufacturer / Brand
• Astor (brand), Radio Corporation Pty., Ltd.; Melbourne

• Year
• 1949

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 188881

• • alternative name: Radio Corp.of Australia

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6SA7GT 6SK7GT 6SQ7GT 6V6GT 6X5GT

• Number of Transistors

• Semiconductors
• Vibrator

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Metal case

• from Radiomuseum.org
• Model: LM - Astor brand, Radio Corporation

• Shape
• Chassis only or for «building in»

• Notes

• The Popular "5" (Model LL-LM) Australia's most compact 5 Valve Car Radio. Controls are actually part of the receiver, thus reducing installation time and costs to a minimum. Fits neatly under the dash, leaving normal leg room, even in a baby car. The 6-inch Rola speaker ensures plenty of volume.

  Price of £34/7/2 includes installation and whip or cowl aerial (optional).

• Price in first year of sale
• 34.36 £

• Source of data
• -- Original prospect or advert

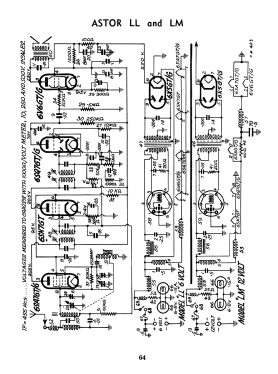

• Circuit diagram reference

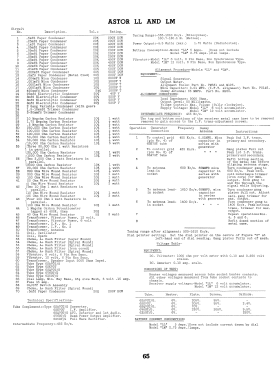

• Australian Official Radio Service Manual Vol. VIII

• Mentioned in
• -- Original prospect or advert (Herald (Vic) May 11, 1949, Page 25.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
