• Year
  • 1952
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 192205
    • alternative name: Radio Corp.of Australia

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s); Reflex
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 200-220; 221-250 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org

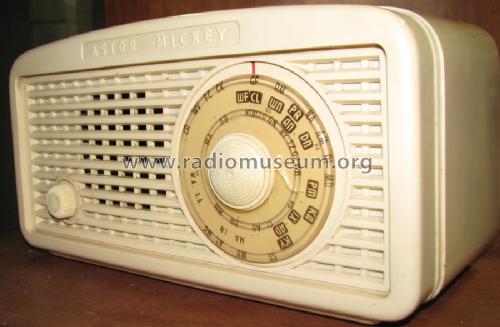

  • Model: Mickey HQ [With 6AD8] - Astor brand, Radio Corporation
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 329 x 172 x 165 mm / 13 x 6.8 x 6.5 inch
  • Notes
  • Case colours available in Walnut, Cream & Green.

  • Price in first year of sale
  • 20.75 AUS £
  • Circuit diagram reference
  • Australian Official Radio Service Manual Vol. XI
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Astor Technical Bulletin HQ-1, 20/1/51, HQ-2, 4/6/51, HQ-3, 7/3/52 & HQ-4, 12/3/52.)
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
