Mickey Mouse OZ

Mickey Mouse OZ; Astor brand, Radio (ID = 161201) Radio
Mickey Mouse OZ; Astor brand, Radio (ID = 2274375) Radio Mickey Mouse OZ; Astor brand, Radio (ID = 161188) Radio
Mickey Mouse OZ; Astor brand, Radio (ID = 2665646) Radio Mickey Mouse OZ; Astor brand, Radio (ID = 2528728) Radio
Mickey Mouse OZ; Astor brand, Radio (ID = 2272652) Radio Mickey Mouse OZ; Astor brand, Radio (ID = 1692050) Radio
Mickey Mouse OZ; Astor brand, Radio (ID = 2289147) Radio Mickey Mouse OZ; Astor brand, Radio (ID = 2528727) Radio
Mickey Mouse OZ; Astor brand, Radio (ID = 2270670) Radio Mickey Mouse OZ; Astor brand, Radio (ID = 2528729) Radio
Use red slider bar for more.
Mickey Mouse OZ; Astor brand, Radio (ID = 2274375) Radio

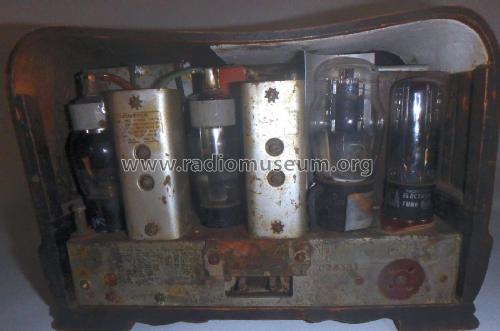

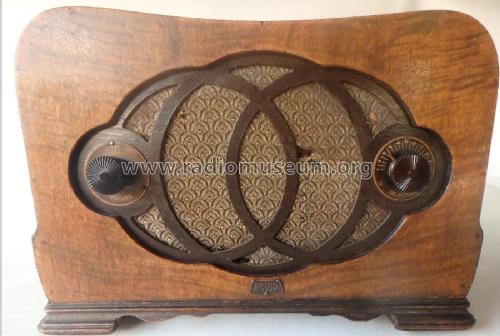

Astor brand, Radio: Mickey Mouse OZ [Radio] ID = 2274375 1400x943
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mickey Mouse OZ, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne:

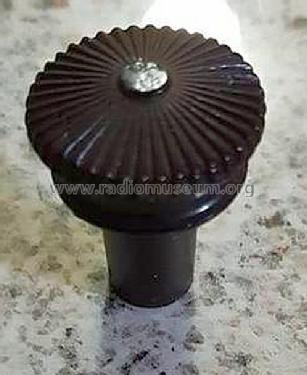

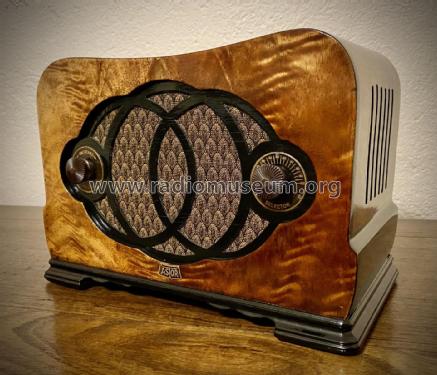

Original knobs and speaker cloth.

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1933–1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6D6 6B7 43 25Z5 or 25Y5
Main principle Superheterodyne (common); ZF/IF 456 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 220-260 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Mickey Mouse OZ - Astor brand, Radio Corporation
Material Wooden case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Notes

Later versions used 25Y5.

The Minnie Mouse Auditorium Speaker was available as an accessory for this radio.

It plugged into a socket on the rear and was switched into circuit by a rotary switch on the side of the radio. It is assumed a special knob was proved with the speaker to operate the switch on the side of the Astor OZ.

Later known examples, with serial numbers around 7000 have the power plug and extension speaker socket on the chassis removed and blanked off with a Bakelite cover. The speaker change over switch is also removed; however, the cabinet still has the hole for the speaker change over knob.

Price in first year of sale 13.00 Aus£
Source of data - - Data from my own collection
Mentioned in Silicon Chip Magazine

Model page created by Peter Hughes. See "Data change" for further contributors.
