- Land
- Australien
- Hersteller / Marke
- Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
- Jahr
- 1951–1956
- Kategorie
- Rundfunkempfänger (Radio - oder Tuner nach WW2)
- Radiomuseum.org ID
- 192198
-
- anderer Name: Radio Corp.of Australia
Klicken Sie auf den Schaltplanausschnitt, um diesen kostenlos als Dokument anzufordern.
- Anzahl Röhren
- 5
- Hauptprinzip
- Super mit HF-Vorstufe; ZF/IF 455 kHz; 2 NF-Stufe(n)
- Anzahl Kreise
- 7 Kreis(e) AM
- Wellenbereiche
- Mittelwelle und mehr als 2 x Kurzwelle.
- Betriebsart / Volt
- Trockenbatterien / 2 x 45 & 1.5 Volt
- Lautsprecher
- Dynamischer LS, keine Erregerspule (permanentdynamisch) / Ø 8 inch = 20.3 cm
- Material
- Leder / Stoff / Plastic / Segeltuch über div. Material
- von Radiomuseum.org
- Modell: NP - Astor brand, Radio Corporation
- Form
- Reisegerät > 20 cm (netzunabhängig betreibbar)
- Abmessungen (BHT)
- 14 x 11.5 x 5.5 inch / 356 x 292 x 140 mm
- Bemerkung
-
ASTOR Bandspread Portable
Radio Corporation Pty. Ltd. Grant St., South Melbourne Vic.Model: NP

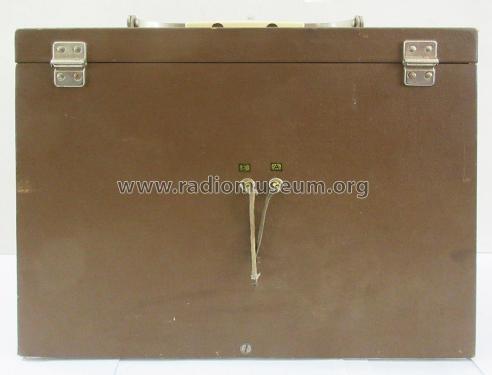

Features: 5 valves, 1.4 volt D/W portable receiver having bandspreading on 19, 25 and 31 metre bands. Tuned RF stage. Valve compliment: 1T4, 1A7GT, 1T4, 1S5 and 3V4. Fitted with one 745 (Diamond 3745) and two 482 (Diamond 3482) batteries; plug for external HD battery or power pack. 8" speaker. Built-in aerial; external A/E terminals. Plastic dial with All-States B/C calibrations. Dual-knob volume control and on/off wave-change switch. Leatherette-covered wooden case with lid; metal and plastic handle hinged to fold on lid; battery replacement through base held by four screws. (FROM MINGAY'S RADIO ELECTRICAL WEEKLY NEW PRODUCTS, 12/10/1951).See also:
Astor Model ANP
- Nettogewicht
- 18 lb 0 oz (18 lb) / 8.172 kg
- Originalpreis
- 46.35 AUS £
- Schaltungsnachweis
- Australian Official Radio Service Manual Vol. XI
- Literaturnachweis
- Mingay's Price Service (May 1952 to Nov 1956.)
- Literatur/Schema (1)
- -- Original-techn. papers. (Astor Technical Bulletin NP-1, 20/12/1951.)
- Literatur/Schema (2)
- Australian Official Radio Service Manual AORSM (Volume 11, 1953 (for 1952 models), Page 44.)
- Autor
- Modellseite von Stuart Irwin angelegt. Siehe bei "Änderungsvorschlag" für weitere Mitarbeit.
