Minimax Radio “B” Battery. No. 482

Minimax Radio “B” Battery. No. 482; Ever-Ready/Eveready (ID = 2383697) Power-S Minimax Radio “B” Battery. No. 482; Ever-Ready/Eveready (ID = 2383698) Power-S
Minimax Radio “B” Battery. No. 482; Ever-Ready/Eveready (ID = 2383699) Power-S
Use red slider bar for more.
Minimax Radio “B” Battery. No. 482; Ever-Ready/Eveready (ID = 2383697) Power-S
Ever-Ready/Eveready: Minimax Radio “B” Battery. No. 482 [Power-S] ID = 2383697 475x671
Select picture or schematic to display from thumbnails on the right and click for download.
For model Minimax Radio “B” Battery. No. 482, Ever-Ready/Eveready (Brand in Australia - 1901 - 1985); Sydney:
eBay advertisement by seller “vintage_all_sorts”, Item Number 163579454612. Please contact Radio Museum to provide more complete photo credit information or request removal.

Country:  Australia
Manufacturer / Brand:  Ever-Ready/Eveready (Brand in Australia - 1901 - 1985); Sydney
Year: 1940 Category: Power supply/conditioner or battery or charger
Details
Power type and voltage 45 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Minimax Radio “B” Battery. No. 482 - Ever-Ready/Eveready Brand in
Material Special material, described in the notes.
Dimensions (WHD) 149 x 90 x 45 mm / 5.9 x 3.5 x 1.8 inch
Notes

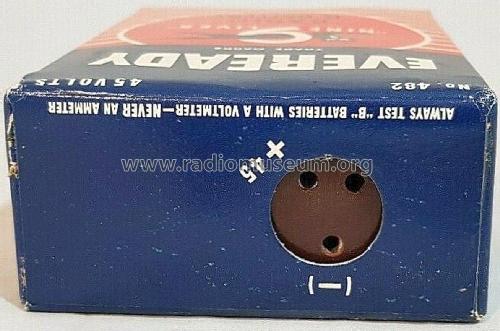

Minimax 45 Volt, Radio “B” Battery.

30 by 1.5 Volt cells used in this battery.

Minimax batteries were manufactured with a layer (biscuit) type cell construction in which the carbon electrode is replaced with a thin layer of carbon and placed on the zinc electrode of the adjacent cell in series, thus making a more compact space per cell and reducing overall battery size.



Mentioned in -- Original prospect or advert

Model page created by Gary Cowans. See "Data change" for further contributors.
