OA54 AP; Astor brand, Radio (ID = 760849) Radio

OA54 AP; Astor brand, Radio (ID = 760850) Radio
OA54 AP; Astor brand, Radio (ID = 1409768) Radio OA54 AP; Astor brand, Radio (ID = 1409769) Radio
OA54 AP; Astor brand, Radio (ID = 1409770) Radio OA54 AP; Astor brand, Radio (ID = 1409771) Radio
Use red slider bar for more.
OA54 AP; Astor brand, Radio (ID = 1409768) Radio
Astor brand, Radio: OA54 AP [Radio] ID = 1409768 933x589
Select picture or schematic to display from thumbnails on the right and click for download.

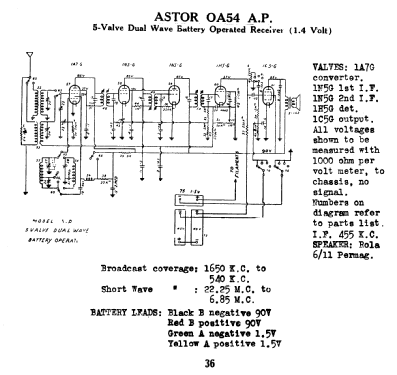

For model OA54 AP, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne:
Front view, correct positions of knobs is not known.

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1939–1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1A7G 1N5G 1N5G 1H5G 1C5G or 1Q5G
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Storage and/or dry batteries / 90 & 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out 0.24 W (unknown quality)
from Radiomuseum.org Model: OA54 AP - Astor brand, Radio Corporation
Material Bakelite case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 14.375 x 8.5 x 8 inch / 365 x 216 x 203 mm
Notes

AM  540 - 1650 kHz

SW 6.85 - 22.25 MHz.

The output valve was changed to a 1Q5G for 1941-1942 production.

Price in first year of sale 24.15 Aus£

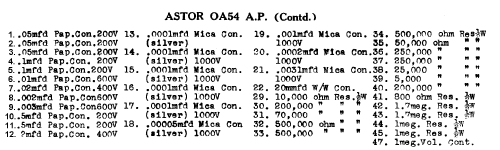

Circuit diagram reference Australian Official Radio Service Manual Vol. III
Literature/Schematics (1) Mingay's Radio Diagram & I.F. Index

Model page created by Stuart Irwin. See "Data change" for further contributors.
