Transistor P7G

Transistor P7G; Astor brand, Radio (ID = 1424353) Radio

Transistor P7G; Astor brand, Radio (ID = 1424354) Radio

Transistor P7G; Astor brand, Radio (ID = 1424355) Radio
Transistor P7G; Astor brand, Radio (ID = 1424340) Radio Transistor P7G; Astor brand, Radio (ID = 1424341) Radio
Transistor P7G; Astor brand, Radio (ID = 1424342) Radio Transistor P7G; Astor brand, Radio (ID = 1424343) Radio
Transistor P7G; Astor brand, Radio (ID = 1655539) Radio Transistor P7G; Astor brand, Radio (ID = 1655540) Radio
Transistor P7G; Astor brand, Radio (ID = 1655541) Radio Transistor P7G; Astor brand, Radio (ID = 1655542) Radio
Transistor P7G; Astor brand, Radio (ID = 1655543) Radio
Use red slider bar for more.
Transistor P7G; Astor brand, Radio (ID = 1424340) Radio
Astor brand, Radio: Transistor P7G [Radio] ID = 1424340 933x711
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transistor P7G, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne:
Cabinet was received with the grill pushed in. Grill straightened while the speaker was checked.

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1964–1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: AF116N 2N412 2N410 2N410 2N406 2N406 AT74 AT74 1N295 1N295
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1 x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Transistor P7G - Astor brand, Radio Corporation
Material Various materials
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 250 x 180 x 80 mm / 9.8 x 7.1 x 3.1 inch
Notes

Astor P7G Portable Radio

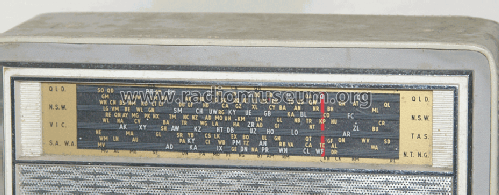

   A powerful eight transistor portable with tuned RF stage for greater signal to noise ratio. Features: large ferrite rod aerial and efficient 5" x 4" speaker. Printed circuit for reliability. Fitted with socket for connecting to car radio aerial. Full-length horizontal dial. Available in tan, parchment, rec and charcoal.

Battery: Eveready Type 276P.

Price after the introduction of decimal currency in Australia (14/2/1966) was $75.60. Price includes batteries.

See also article by Rodney Champness in Silicon Chip, November 2011.

Price in first year of sale 37.80 AUS £
Mentioned in Mingay's Radio Electrical Weekly Price Service (REWPS) (Feb 1965 to Feb 1966.)
Literature/Schematics (1) - - Manufacturers Literature (Astor Service Data, P7G-1, 2/12/1964.)
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (Group 2, 1965, Page A75. (Also at KevinChant com))

Model page created by Stuart Irwin. See "Data change" for further contributors.
