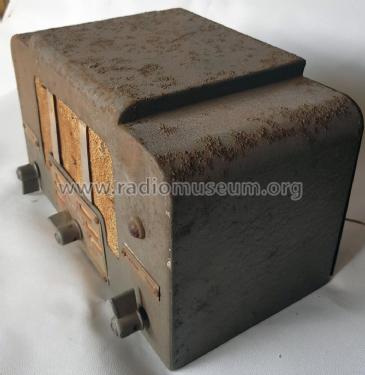

Intercom ; Atkins WA Ltd.; (ID = 2519428) Misc
Atkins WA Ltd.;: Intercom [Misc] ID = 2519428 1400x1437
Select picture or schematic to display from thumbnails on the right and click for download.
For model Intercom, Atkins (WA) Ltd.; Perth, WA

Country:  Australia
Manufacturer / Brand:  Atkins (WA) Ltd.; Perth, WA
Year: 1950 ?? Category: Miscellaneous (Other, Various) - see notes
Valves / Tubes 3: 5Y3GT 6V6GT 6U7
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Intercom - Atkins WA Ltd.; Perth, WA
Material Metal case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 285 x 175 x 155 mm / 11.2 x 6.9 x 6.1 inch
Notes

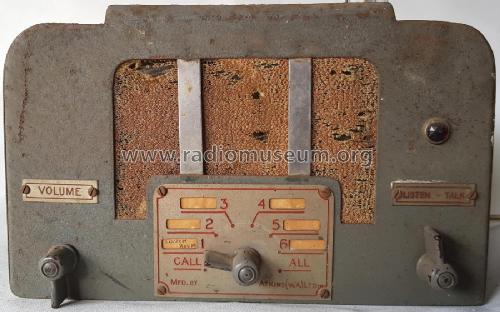

Intercom system for 2 to 6 stations. Push to talk operation.

Mentioned in -- Collector info (Sammler)

Model page created by Gary Cowans. See "Data change" for further contributors.
