A82A Bordeaux

Atlantic; Paris

  • Year
  • 1957
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 87927

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 145; 225; 245 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.7 cm = 5 inch
  • Power out
  • 2.3 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: A82A [Bordeaux] - Atlantic; Paris
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 345 x 212 x 167 mm / 13.6 x 8.3 x 6.6 inch
  • Notes
  • 4 gammes d'ondes: PO 184 à 577 m, GO 1070 à 2000 m, OC 16,48 à 40,8 m, bande étalée 39,2 à 50,8 m. Cadran verre. Clavier 5 touches.

    Coffret polystyrène bordeaux, façade ivoire, décor peint doré.

    Équivalent au Médiator M29A et Ténor T29A (/01) à l'exception des couleurs différentes.

    Trois exécutions:

    • A82A: coffret bordeaux, décor peint doré
    • A82A /01: coffret ivoire, décor peint vert
    • A82A /02: coffret ivoire, décor peint doré

    Same as the models A82A /01 and A82A /02 (with other colors). Similar to the model Ténor T29A.

    Dial lamps: 2 x 8045D (6,3V/0,32A).

    Ranges:  LW 150 to 280 kHz; MW 520 to 1630 kHz; SW1 5,93 to 7,65 MHz; SW2 7,35 to 18,2 MHz.

  • Net weight (2.2 lb = 1 kg)
  • 4.5 kg / 9 lb 14.6 oz (9.912 lb)

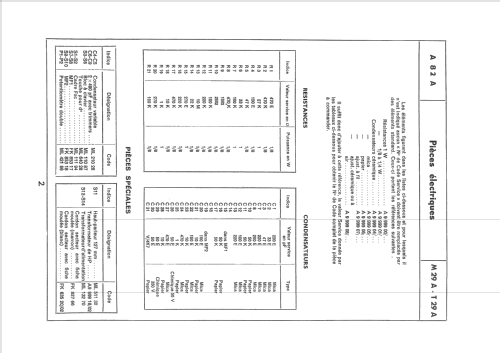

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Vitor Oliveira. See "Data change" for further contributors.
