A884T

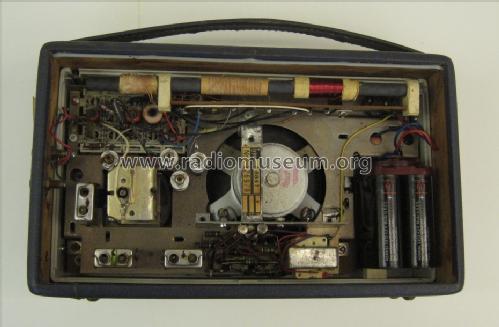

A884T; Atlantic; Paris (ID = 1346158) Radio A884T; Atlantic; Paris (ID = 1346159) Radio
Use red slider bar for more.

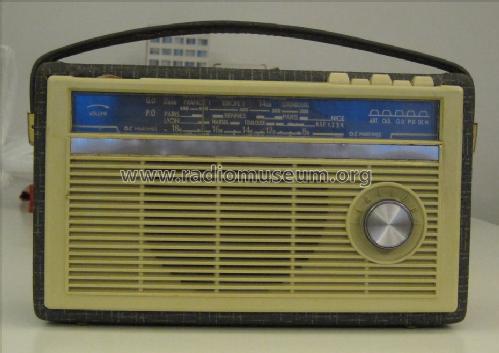

A884T; Atlantic; Paris (ID = 1346158) Radio
Atlantic; Paris: A884T [Radio] ID = 1346158 932x659
Select picture or schematic to display from thumbnails on the right and click for download.
For model A884T, Atlantic; Paris

Country:  France
Manufacturer / Brand:  Atlantic; Paris
Year: 1962 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: A884T - Atlantic; Paris
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 290 x 170 x 80 mm / 11.4 x 6.7 x 3.1 inch
Notes

GO, PO, OC Maritimes 79 - 184m.

Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)

Model page created by Wolfgang Gebert. See "Data change" for further contributors.
