All Transistor A29 /T /G

All Transistor A29 /T /G; Atlantic; Paris (ID = 2066957) Radio

All Transistor A29 /T /G; Atlantic; Paris (ID = 2066958) Radio

All Transistor A29 /T /G; Atlantic; Paris (ID = 2066959) Radio

All Transistor A29 /T /G; Atlantic; Paris (ID = 2066960) Radio

All Transistor A29 /T /G; Atlantic; Paris (ID = 2066961) Radio

All Transistor A29 /T /G; Atlantic; Paris (ID = 2066963) Radio

All Transistor A29 /T /G; Atlantic; Paris (ID = 2066964) Radio
Use red slider bar for more.
All Transistor A29 /T /G; Atlantic; Paris (ID = 2066957) Radio

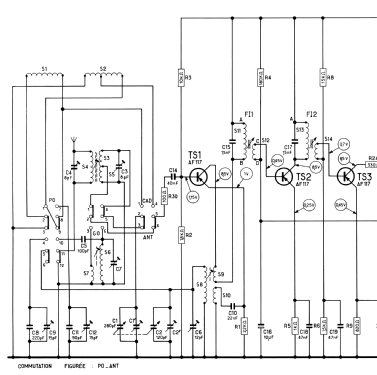

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  France
Manufacturer / Brand:  Atlantic; Paris
Year: 1966/1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: AF117 AF117 AF117 AC125 AC129 AC128 OA79
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 2 x 4,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.5 cm = 4.1 inch
Power out
from Radiomuseum.org Model: All Transistor A29 /T /G - Atlantic; Paris
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 250 x 150 x 70 mm / 9.8 x 5.9 x 2.8 inch
Notes

2 gammes d'ondes: PO 184 à 577 m, GO 1130 à 2000 m. Clavier à 3 touches. Cadre ferrocapteur fixe. Prise antenne voiture.

Net weight (2.2 lb = 1 kg) 1.350 kg / 2 lb 15.6 oz (2.974 lb)
Mentioned in -- Original-techn. papers.

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
