• Country
• United States of America (USA)

• Manufacturer / Brand
• Atlantic-Pacific (A-P) Radio Supplies Co, Inc.;San Francisco

• Year
• 1924/1925

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 33181

• • alternative name: Oard Radio Laboratories; Stockton (CA)

• Number of Tubes
• 5

• Valves / Tubes
• UV201A UV201A UV201A UV201A UV201A

• Main principle
• TRF without regeneration; 2 AF stage(s); Neutrodyne

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: A & P Standard Neutrodyne - Atlantic-Pacific A-P Radio

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 25 x 8 x 9 inch / 635 x 203 x 229 mm

• Notes

• Three dials (primary tuning control knobs)

• Price in first year of sale
• 65.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Mentioned in

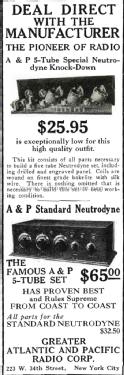

• Radio News (May 1924, Radio News magazine page 1663)

• Other Models

• Here you find 17 models, 14 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Atlantic-Pacific (A-P) Radio Supplies Co, Inc.;San Francisco
