4120

Atwater Kent Mfg. Co.; Philadelphia, USA

Data
Forum
Pictures
Collections

  • Year
  • 1923
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 183317

 Technical Specifications

  • Number of Tubes
  • 2
  • Main principle
  • TRF without regeneration
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case, TUBES VISIBLE.
  • from Radiomuseum.org
  • Model: 4120 - Atwater Kent Mfg. Co.;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 25 x 0 x 8.5 inch / 635 x 0 x 216 mm
  • Notes

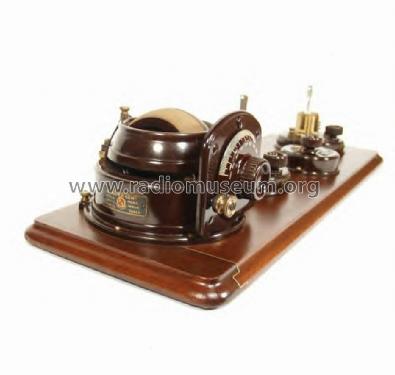

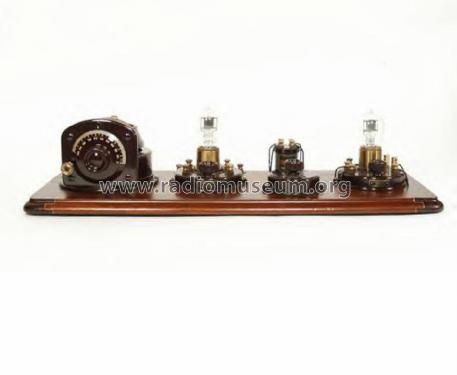

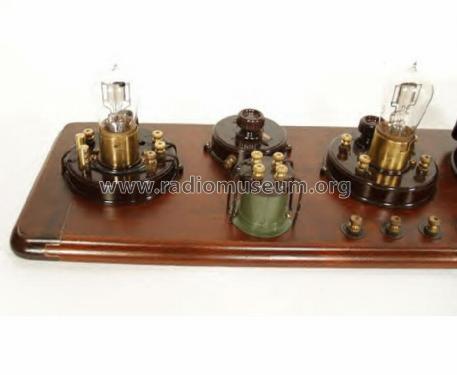

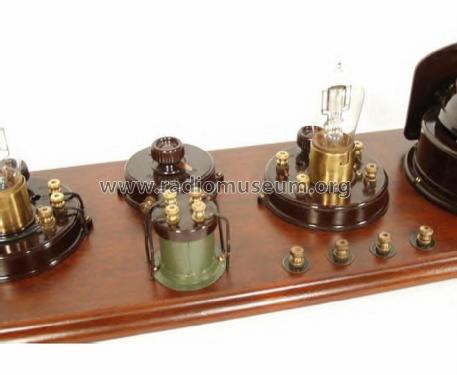

  • Similar in design and functionality to the more common 4052, the 4120 is a relatively simple 2-tube set with no provision on the board for AF amplification. Instead of the three tube T/A used on the 4052 the 4120 replaced the T/A with just the detector island. Comprising a detector, an RF amplifer, an RF transformer, a potentiometer, and a Type 11 tuner, the 4120 was designed to be used exclusively with headphones. The radio was sold through AK dealers, but it was ordered from the factory (and assembled there) strictly on an as-needed basis, and since few people in 1923 were looking for a radio without AF amplification, very few of these sets were manufactured.

  • Price in first year of sale
  • 45.00 $
  • Author
  • Model page created by Alan Larsen. See "Data change" for further contributors.
