4340 Model 10 (non-Radiodyne) Non-Binding Post Model (green cans)

4340 Model 10 ; Atwater Kent Mfg. Co (ID = 1770171) Radio
4340 Model 10 ; Atwater Kent Mfg. Co (ID = 2380546) Radio 4340 Model 10 ; Atwater Kent Mfg. Co (ID = 399373) Radio
4340 Model 10 ; Atwater Kent Mfg. Co (ID = 399374) Radio 4340 Model 10 ; Atwater Kent Mfg. Co (ID = 399375) Radio
4340 Model 10 ; Atwater Kent Mfg. Co (ID = 399377) Radio 4340 Model 10 ; Atwater Kent Mfg. Co (ID = 1039189) Radio
4340 Model 10 ; Atwater Kent Mfg. Co (ID = 1039190) Radio 4340 Model 10 ; Atwater Kent Mfg. Co (ID = 1039192) Radio
4340 Model 10 ; Atwater Kent Mfg. Co (ID = 1039199) Radio 4340 Model 10 ; Atwater Kent Mfg. Co (ID = 1039201) Radio
Use red slider bar for more.
4340 Model 10 ; Atwater Kent Mfg. Co (ID = 2380546) Radio

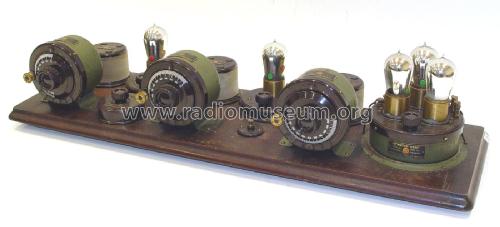

Atwater Kent Mfg. Co: 4340 Model 10 [Radio] ID = 2380546 1400x636

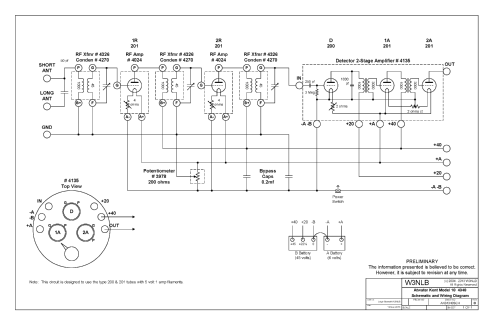

Select picture or schematic to display from thumbnails on the right and click for download.
For model 4340 Model 10 (non-Radiodyne) Non-Binding Post Model (green cans), Atwater Kent Mfg. Co.; Philadelphia, USA:
Collection privée (réf.: 106,107, 1175)

Country:  United States of America (USA)
Manufacturer / Brand:  Atwater Kent Mfg. Co.; Philadelphia, USA
Year: 1923 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UV201A UV201A UV200 or UV201A UV201A UV201A
Main principle TRF without regeneration
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: 4340 Model 10 [Non-Binding Post Model ] - Atwater Kent Mfg. Co.;
Material Wooden case, TUBES VISIBLE.
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 31.5 x 6 x 10 inch / 800 x 152 x 254 mm
Notes The first change in the Atwater Kent 4340 Model 10 breadboard was one of cost savings. All of the binding posts on the RF coils, the tube islands and the variable condensers were eliminated.
Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Price in first year of sale 100.00 $
Mentioned in Radio Manufacturers of the 1920s, Vol 1 (page 75)
Literature/Schematics (1) A.Atwater Kent, The Man, 2002

Model page created by Alan Larsen. See "Data change" for further contributors.
